TECHNICAL SPECIFICATIONS
Measurment range: Height 0 - 2500 mm, Flow Rate 0 - 9999 m3/h
Input: 1 echo Doppler ultrasonic sensor 125 KHz
Outputs: 1 analog output 4-20 mA (500 Ohms max)
3 relays configurable for pulse proportional to the flow rate or thresholds
Protection: IP 65 (waterproof wall) • IP 64 (built-in)
Conversion Tables height/Flow:
Integrated works for standard or not .
32 points Programmable Curve
Power supply: AC 110 V or 230 V 50/60 Hz 15 VA max, DC 18 to 36 V, 10 W max, solar panels as an option
Dimensions: 188 x 160 x 107 mm (waterproof wall), 200 x 112 x 108 mm (built-in)
Weight: 1 Kg (wall waterproof ), 1.3 Kg (built-in)

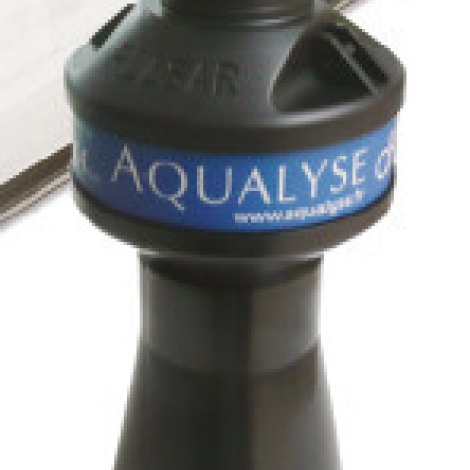

Sensor
Technology: Ultrasonic doppler echo
Temperature Compensation: Yes, built-in to sensor
Accuracy/half angle of emission/Frequency: 1 mm/6 °/125 kHz
Dist min: 0,00 m
Operating temperature: - 40 ° C to + 90 ° C
Dist cable (standard, max): 5 m/1000 m, 8 mm diameter
Protection: IP 68
Weight/Dimensions: 0.7 Kg, 75 mm x 184 mm + sunscreen 180 mm diameter
Fixing: Boss M20 or 1’’NPT, max thickness 8 mm
For specific range please check the attachment below!
