SOFTWARE AND FEATURES
2 Modbus networks inputs: Modbus RTU (A = DIGISENS sensors ; B = configurable)
Digital sensor inputs: 4 (Modbus RTU A network) + 1 Modbus RTU B network configurable
2 analog inputs: Configurable in 0/10 V – 0/4 -20 mA. 12 VDC sensor power supply
2 digital inputs: External cleaning information taken into account: switches to maintenance mode
4 analogue outputs: 0/4-20 mA • Choice of programmable source parameters depending on connected sensors
4 relay outputs:
NO/NC configurable via software
Setpoint: configuration of the working range (hysteresis/direction) and activation time
Timed control for external cleaning system
Hardware sensor fault alarm output
3 digital outputs: NO/NC configurable via software
Configurable supply voltage: 5 or 12VDC
Modbus outputs: Modbus RTU • Ethernet TCP/IP
Data logging: Data logging and export in CSV format (via USB key)
Atmospheric pressure sensor: To compensate oxygen pression
CHARACTERISTICS

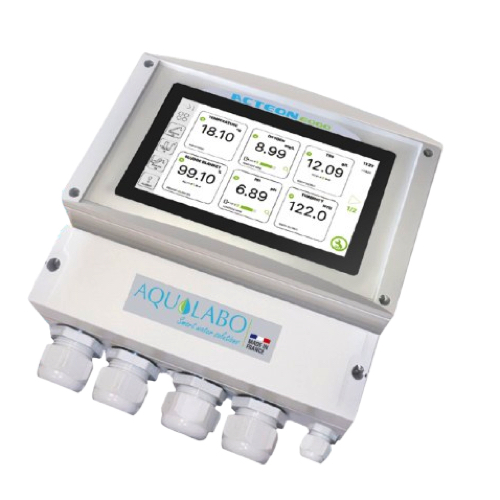

Display: Backlit graphic LCD touchscreen – Size: 7 inches, 1024x600
Analog outputs: 0/4.00 – 25.00 mA with galvanic isolation • Max load 400 W
Relay outputs: 6 A /250 V
Operating conditions:
Temperature: -15°C to + 50 °C • Temperature of storage/transport: -30°C to +70°C
USB port: Unloading of the recorded data
Power/ Electrical protections: 10-28 VDC (absolute max. = 30 VDC) • Power limitation = 100 W
Electrical protection: compliant with IEC 61010-1
HOUSING
Dimensions (WxHxD): 257x247x134 mm
Material Enclosure: Polycarbonate
Seal: Polyurethane
Cable glands: Polyamide
Protection rating: IP 65
