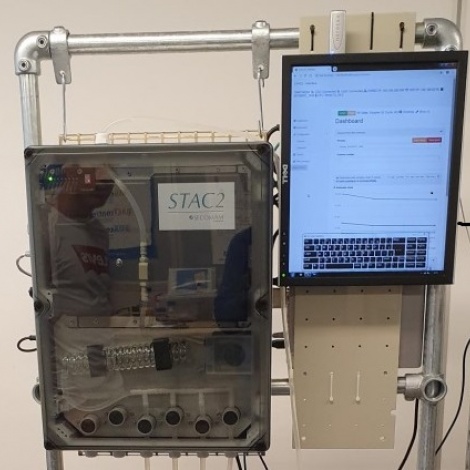

STAC2 analyser specifications:
Sample streams: 4 Different samples
Dimensions Height: 500 mm Width: 400 mm Depth: 265 mm
Weight: 18 kg
Protection; IP53
Digital output:
1x Ethernet RJ45 port for MODBUS and/or HMI access
1x WIFI connection for HMI access
1x USB port for USB Key recorded data history backup
Flow cells: Interchangeable 2, 5 and 50mm optical path
Cleaning: Automatic, chemical for tubing / Internal case by compressed air
Lamp: Xenon
Blank: Automatic
Data readout: On separate PC / tablet or mobile phone (optional)
Operating temperature; 10°C to 40°C / 50°F to 104°F
Data Storage ;On internal SD Card. An internal security back-uo is performed daily on internal USB drive. Data export on internal USB key.
Mounting: Wall-mounted
Digital input / output: Through MODBUS TCP/IP and RTU
Power; 24VDC +/-0.5VDC 3A or 100 – 240V (Optional) 50-60Hz with External Power
supply
Measuring range:
COD : 2 to 8750 mg/L
BOD : 0.5 to 8750 mg/L
TOC : 1 to 7500 mg/L
TSS : 5 to 2500 mg/L
NO3 : 1 to 1000 mg/L
Turbidity compensation
For specific range please check the attachment below!
Datasheet
Datasheet On Line Analyser STAC2
Manual
User Manual On-line Analyzer UV multiparameters NO3, DCO, COT, DBO_STAC2_Start guide
User Manual On-line Analyzer UV multiparameters NO3, DCO, COT, DBO_STAC2_Modbus frame2
User Manual On-line Analyzer UV multiparameters NO3, DCO, COT, DBO_STAC2
User Manual On-line Analyzer UV multiparameters NO3, DCO, COT, DBO_STAC2_Modbus frame
