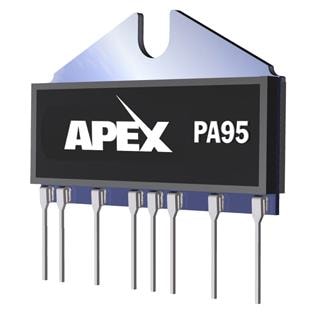

Apex Microtechnology PA95 ເອັັບພລິຟໄອເຟີເຣີຊັນອອບພັມປລິຟເຣີຊັນລີເນຍ, 900V, 100mA

Shutdown: No Shutdown

Unit Weight: 10 g

Mounting Style: Through Hole

SR - Slew Rate: 30 V/us

Number of Channels: 1 Channel

Supply Voltage - Max: 900 V

Supply Voltage - Min: 100 V

Ib - Input Bias Current: 2 nA

Ios - Input Offset Current: 500 pA

Output Current per Channel: 100 mA

Vos - Input Offset Voltage: 5 mV

Maximum Dual Supply Voltage: +/- 450 V

Minimum Dual Supply Voltage: +/- 50 V

GBP - Gain Bandwidth Product: 10 MHz

Maximum Operating Temperature: + 85 C

Minimum Operating Temperature: - 25 C

CMRR - Common Mode Rejection Ratio: 98 dB
