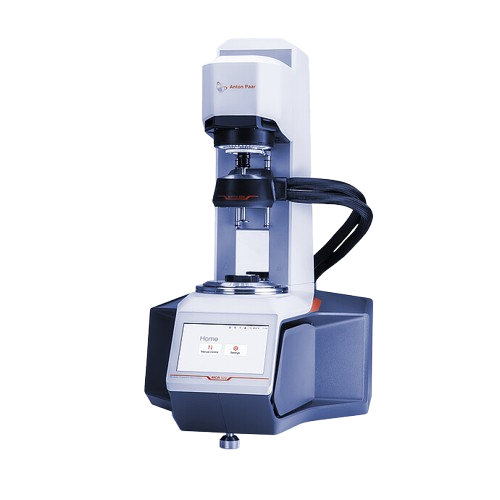

Anton Paar MCR 503 ເຄື່ອງວັດຄວາມຫນັກລົດຮູບແບບພາກສ່ວນ (1 nNm; 0.2 nNm; 230 mNm)
Bearing design: Air, fine-pored carbon
Motor design: Electronically commutated (EC) permanent magnet synchronous motor
Displacement transducer: High-resolution optical encoder
Normal force measurement design: 360° capacitive sensor, non-contacting, fully integrated in bearingWorking modes: CMT
Min. torque (rotation): 1 nNm
Min. torque (oscillation): 0.2 nNm
Max. torque: 230 mNm
Torque resolution: 0.05 nNm
Angular deflection resolution: < 1 nrad
Min. angular velocity2): 0 rad/s
Max. angular velocity / max. speed: 314 rad/s
3,000 rpm
Min. frequency3): 2 Hz x 10^-8 Hz
Max. frequency: 200 Hz
Normal force range: 0.001 N to 50 N
Normal force resolution: 0.1 mN
TruStrain: ✓
Ready for DMA in tension, bending, and compression4): ✓
Dimensions (W x H x D): 453 mm x 775 mm x 673 mm
Weight: 50 kg
✓ included | o optional | x not included
1) 1 nNm with activated TruStrain™ option.
2) In controlled shear stress (CSS) mode. In controlled shear rate (CSR) mode depending on measuring point duration and sampling rate.
3) Theoretical value (duration per cycle = 2 years).
4) US Pat. 9574983 and US Pat. 10908058.
