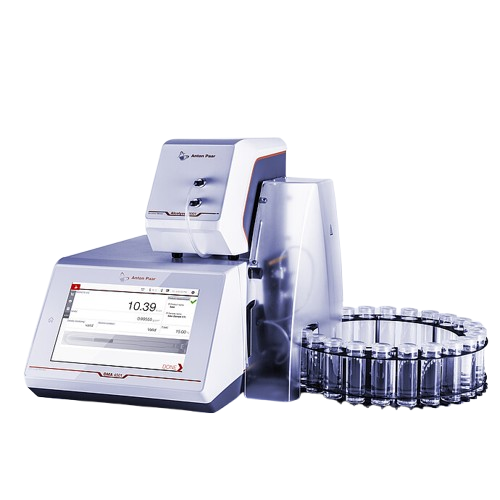

Anton Paar Xsample 520 ຕົວແປງຕົວຢ່າງ (2 ~ 5 minutes)
Viscosity range: up to 3,000 mPa•s at ambient and measuring temperature¹
Filling mode:
with peristaltic pump:
Suction mode in one direction
Suction mode with pumping back and forth at the beginning
Suction mode with creating air bubbles at the beginning
Suction mode with pumping back and forth at the beginning and no air gap after filling procedure
Suction mode in one direction and no air gap after filling procedure
Typical time of filling and measuring cycle: 2 to 5 minutes
Minimum sample volume: approx. 10 mL to 20 mL
Sample vials per magazine: 24 vials of 50 mL or 48 vials of 12 mL (optional: 96 vials of 12 mL)
Environmental conditions (EN 61010): indoor use only
Operating temperature: +15 °C to +35 °C (+59 °F to +95 °F)
Pollution degree: 2
Overvoltage category: II
Altitude: max. 3,000 m (9,840 ft)
Power supply: supplied by the master instrument
AC power supply voltage according to technical data plate at the rear of the master instrument (protective grounding required)
Dimensions incl. master instrument
(L x W x H): 532 mm x 347 mm x 360 mm (20.9 in x 13.7 in x 14.2 in)
Weight excl. master instrument: approx. 12 kg (26.5 lbs)
