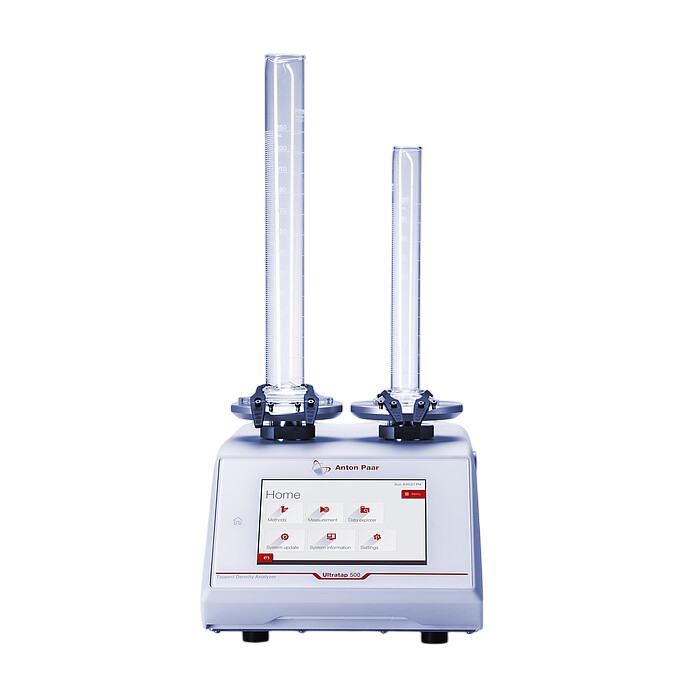

Anton Paar Ultratap 500 Twin ແຕະເຄື່ອງທົດສອບຄວາມຫນາແຫນ້ນ (2 stations; 24 VDC, 2.6 A, 63 W)

Stations: 2

Cylinder sizes accommodated: 250 mL standard 5, 10, 25, 50, 100, 250, 500, 1,000 mL¹

Tap speed: User configurable 50 to 350 taps/minute

Drop height: 3 mm (0.12 inch) ± 0.2 mm or 14 mm (0.55 inch) ± 1 mm

Sound level: 65 dB (58 dB with optional noise reduction cabinet)

Tap mode: User configurable by time (1 second to 999 minutes) or number of taps (1 to 99,999)

User interface: 7-inch TFT WVGA (800 x 480 pixels); PCAP touchscreen

User management: Included (with password protection)

USB ports: 2

Supported input devices: Barcode reader, keyboard, mouse, touchscreen

Balance and printer connection: Yes (via USB port)

Built-in calculations: Bulk density, Carr’s compressibility index, Hausner ratio, tapped density

Storage capacity: 1,000 reports/100 methods

Built-in methods: 24

Physical And Utilities:

Dimensions : Height: 228.6 mm (9 inches) no cylinder/vessel, 188 mm (7.4 inches) to top of housing

Width: 263.5 mm (10.4 inches)

Depth: 361 mm (14.2 inches)

Weight : 17.6 kg (38.7 pounds)

Electrical:

Voltage-External AC/DC adapter: Input AC: 100-240 V, 1.3 A

Frequency: 50 / 60 Hz

Instrument input: 24 VDC, 2.6 A, 63 W

Over-voltage category: I (for the instrument)

Connection : Grounded, single-phase outlet

Environmental:

Temperature : 15 °C - 40 °C (59 °F - 104 °F)

Relative humidity: 10%-80% RH non-condensing

¹ The 500 and 1,000 mL graduated cylinders require the large platform and corresponding TruLock straps (sold separately
