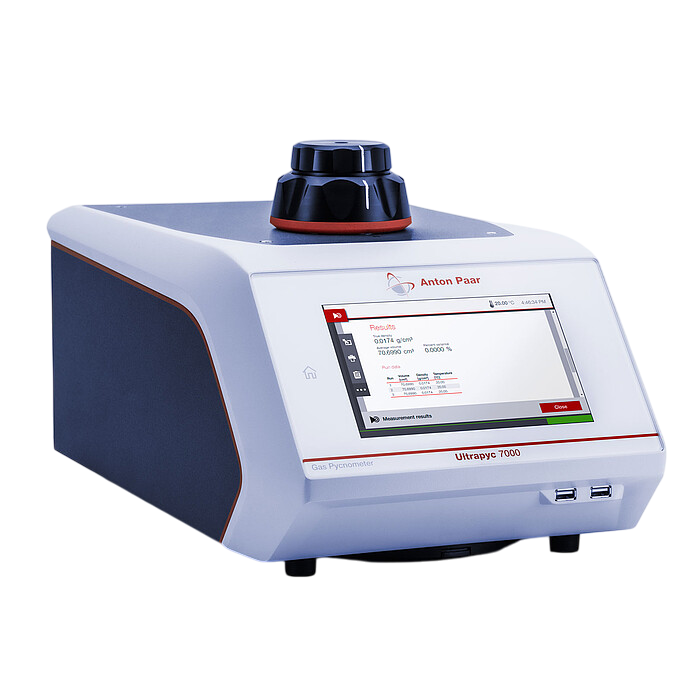

Anton Paar Ultrapyc 7000 Micro Gas Pycnometer ສໍາລັບຄວາມຫນາແຫນ້ນຂອງເຄິ່ງແຂງແລະແຂງ (0.075 %ᵇ; 2 cm³ & 3 cm³)
Performance specifications
Accuracy: 0.075 %ᵇ
Number reference volumes: 2 (TruPyc)
Nominal reference volumes: 2 cm³ & 5 cm³
Inserts available: 10 cm³, 4.5 cm³, 1.8 cm³, 0.25 cm³, 0.1 cm³
Preparation modes: Flow, pulse, vacuum, none
Gas expansion direction: Bi-directional flow (PowderProtect)
Built-in temperature control: 3 °C to 60 °C
Emperature stability: 0.02 °Cᶜ
Built-in & customizable method library: Yes
Built-in foam methods and calculations: No
Sample chamber closure: Repeatable dual-turn self-aligning lid (TruLock)
Display & control: 7-inch TFT WVGA (800×480) PCAP touchscreen
Graphical user interface: Yes
Transducer accuracy: Better than 0.1 %
Pressure reading resolution: Digital pressure readout 0.0001 psi
Connectivity Specifications
USB ports: 4
Printer compatible: Yes
Balance compatible: Yes
Barcode / QR reader compatible: Yes
PC / Network connectivity: Yes (AP Connect of network share)
Languages: Chinese, English, French, German, Japanese, Korean, Polish, Portuguese, Spanish, Turkish
Physical specifications
WxDxH: 27 cm (11 in) × 48 cm (19 in) × 25 cm (10 in)
Weight: 10 kg (22 lb)
Gas used (not supplied): Ultra-high-purity He, N2, or other non-reactive, non-corrosive gas (e.g., Ar) regulated to ≤ 30 psi / 2.07 bar
Power supply: External AC/DC Adapter 100-240 V AC 47-63 Hz, Output 24 VDC 5 A
ᵇ With reference volume of 2.145 cm³
