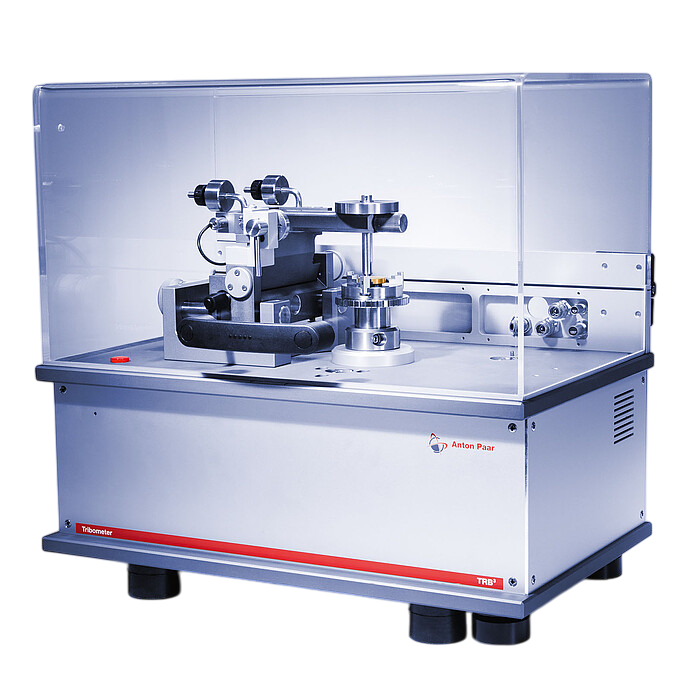

Anton Paar TRB³ Pin-on-disk tribometer (60 N)
Normal force range: up to 60 N
Normal force resolution: - (dead weight)
Friction force range: up to 20 N (5 N option)
Friction force resolution: 0.06 mN (0.015 mN option)
Rotating movement
Speed: 0.2 rpm to 2000 rpm (600 rpm option)
Radius: up to 40 mm
Maximum torque: 450 mN.m
Linear reciprocating movement¹
Stroke length: up to 60 mm
Speed: up to 370 mm/s
Frequency: 0.01 Hz to 10 Hz
Rotational reciprocating movement²
Speed: 0.2 rpm to 2000 rpm (600 rpm option)
Frequency: 0.01 Hz to 7 Hz
Angular amplitude: ±5° to ±150°
Angular resolution: 0.1°
Options
Online wear depth: -2 mm to 2 mm
Heating capability: up to 450 °C in dry condition up to 150 °C in liquid condition
Electrical contact resistance: up to 1000 Ohms
Vacuum level: down to 10^-7 mbar
Relative humidity level: 15 % to 95 %
¹ Linear reciprocating movement specifications depend on the combination of stroke length, frequency, and mass on the stage.
² Rotational reciprocating movement specifications depend on the combination of angular amplitude, frequency, and mass on the stage.
