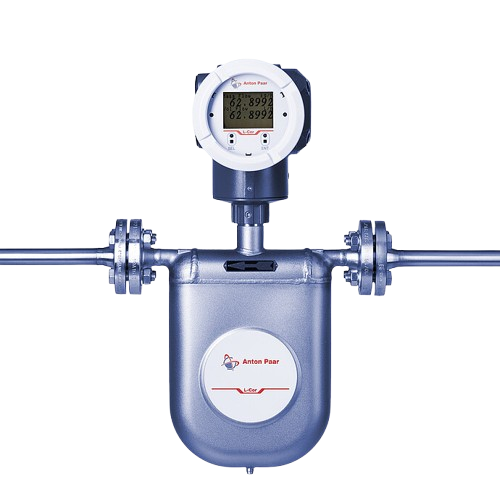

Anton Paar L-Cor 8000 Coriolis Flow Meter (0.024~9 kg/h; 0.72~72 kg/h; 3.6~120,000 kg/h; 3420~700,000 kg/h)

Flowrate: 0.024 kg/h to 9 kg/h; 0.72 kg/h to 72 kg/h; 3.6 kg/h to 120,000 kg/h; 3420 kg/h to 700,000 kg/h

Flow accuracy liquid: ± 0.2%; ± 0.1%

Flow repeatability liquid: ± 0.05%

Flow accuracy gas: ± 0.5% ± ZS

Flow repeatability gas: ± 0.25% ± ½ ZS

Density range: 300 kg/m3 to 2,000 kg/m3

Density accuracy: ± 3 kg/m3; ± 0.5 kg/m3

Nominal diameter: 1/4"; 3/8"; 3/8" to 3"; 4" to 6"

Ambient temperature: - 40 °C to +55 °C

Process temperature: - 200 °C to +200 °C

Outputs: 2x analog, 2x pulse (frequency), 1x status output

Inputs: 1x status input

Digital communication: Bell 202, Modbus RTU (RS-485), Profibus PA, Fieldbus

Transmitter version: Integrated, separately mounted, mounted in control cabinet
