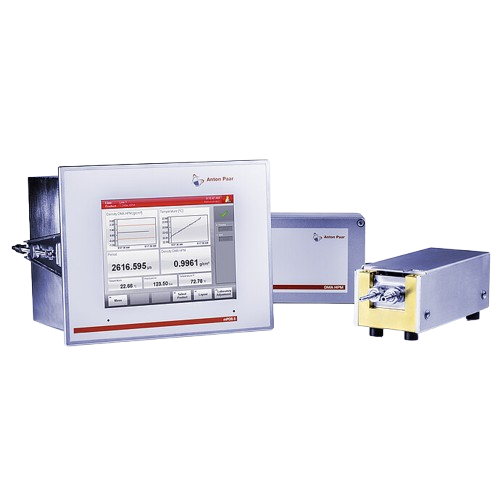

Anton Paar DMA HPM ເ຋ວວັດຂະໜາດພາຍນອກ (0.00001 g/cm3)

Measuring range

Density: 0 to 3 g/cm3

Pressure: 0 to 1400 bar (0 to 20,300 psi)

Temperature: -10 to +200 °C (14 to 392 °F)

Accuracy

Density: Up to 0.0001 g/cm3

Repeatability s.d.

Density: Up to 0.00001 g/cm3

Digital Resolution

Density: 0.00001 g/cm3

Additional information

Cell material: Hastelloy C-276

Volume of the measuring cell: approx. 2 mL

Dimensions (L x W x H)

DMA HPM: 210 x 78 x 86 mm (8.3 x 3.1 x 3.4 inches)

Interface module: 220 x 120 x 80 mm (8.7 x 4.7 x 3.1 inches)

Weight

DMA HPM: 8.3 kg (18.3 lbs)

Interface module: 1.5 kg (3.3 lbs)

Connections: Pressure fittings for metal tubes with 1/4" outer diameter
