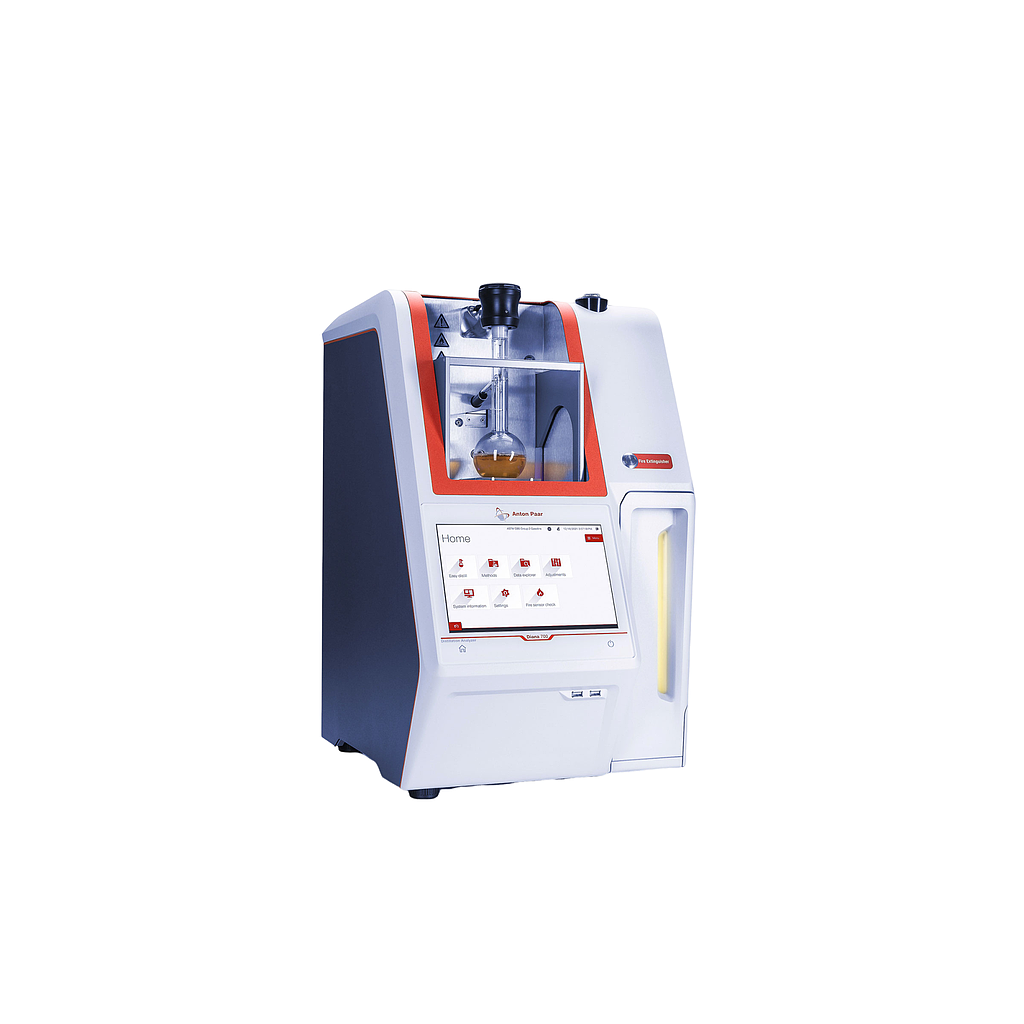

Anton Paar Diana 700 ອຸປະກອນວິເຄາະການດິດສະຕິເລຊັນບະຫລຸດອາກາດ
Standard test methods: ASTM D86 (Group 0, 1, 2, 3, 4), ASTM D850, ASTM D1078, EN ISO 3405 (Group 0, 1, 2, 3, 4), IP 123, IP 195, JIS K 2254, GOST 2177, ASTM D524, ASTM D4530
Operation
User interface: 10" TFT color touchscreen, solvent-proof
Heating system:
Low mass/low voltage heating system with automatic positioning of heater and safety shield
Automatic initial heater settings and heater regulation
Cooling fan to quickly reach safe handling temperature after test
Condenser system:
Liquid-free cooling with Peltier technology
Temperature range: 0 °C to 80 °C, resolution: 0.1 °C
Receiving chamber:
Liquid-free cooling with Peltier technology
Temperature range: 0 °C to 80 °C, resolution: 0.1 °C
Corrosion-proof:
Automated reduced VOC emission
Vapor temperature: Pt100, class A (metal or glass)
Temperature range: 0 °C to 450 °C, resolution: 0.1 °C
Integrated calibration memory with 20 calibration points and automatic read-out (ID detection)
Automatic correction by barometric pressure
Sample volume: Optical static detection system with contact image sensor (CIS) technology
Sample volume scan before test start to measure initial volume (converted to 100 %, if necessary)
Residue scan in receiving chamber with automatic calculation of loss
Volume range: 0 mL to 103.5 mL, resolution: 0.01 mL
Accuracy: ±0.1 mL
Ambient pressure: Built-in pressure sensor, range: 30 kPa to 110 kPa, resolution: 0.1 kPa
Ambient humidity: Built-in humidity sensor, range: 0 % to 95 % (rel. humidity)
Ambient temperature: Built-in temperature sensor, temperature range: -20 °C to +80 °C, resolution: 0.1 °C
Status light: Yes
Test results: >4000
User defined test methods: >200
Safety
Fire extinguisher:
Built-in fire extinguisher with IR sensor for fire detection
Connection of 4 bar to 6 bar CO2 or N2
Condition monitoring system: Detection of flask size, flask support board, vapor temperature sensor, heater shield, heater lift, condenser cleaning, receiving chamber door, receiving cylinder, drip plate, detection if fire extinguishing gas is connected
Operating Requirements
Temperature: 10 °C to 35 °C
Relative humidity: 10 % to 80 % relative humidity at 35 °C
Voltage: 100 V to 240 V, 50/60 Hz
Total power: 900 W
Altitude: 0 m to 5000 m
Dimensions and Weight
Dimensions: approx. 406 mm × 525 mm × 645 mm (W × D × H)
Weight: approx. 40 kg
Further Features
Connectivity: 1 × Ethernet, 4 × USB, Bluetooth, Wi-Fi, AP Connect, LIMS
Accessories: Dry point sensor, 200 mL flask, bar code reader, printer, receipt printer, keyboard, various certified reference materials (CRM)
