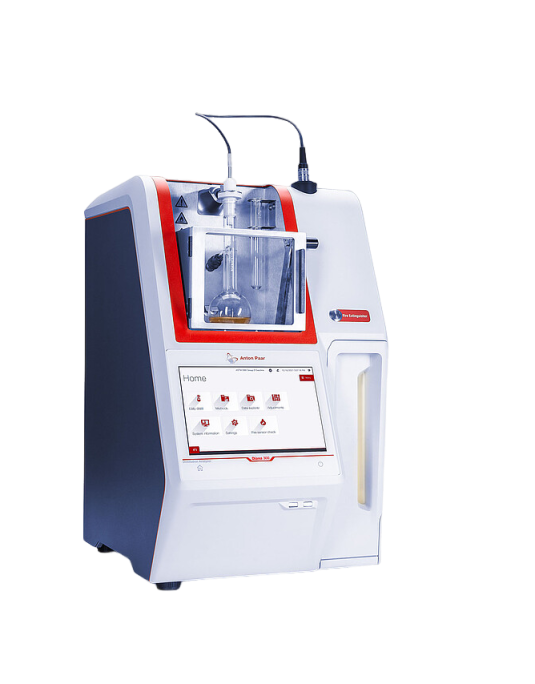

Anton Paar Diana 300 ອຸປະກອນວິເຄາະການດິດສະຕິເລຊັນບະຫລຸດອາກາດ
Standard test methods: ASTM D86 (Group 0, 1, 2, 3, 4), EN ISO 3405 (Group 0, 1, 2, 3, 4), IP 123, JIS K 2254, GOST 2177
Operation
User interface: 10" TFT color touchscreen, solvent-proof
Heating system:
Low mass/low voltage heating system with manual positioning of heater and safety shield
Preprogrammed initial heater settings in test methods
Condenser system:
Liquid-free cooling with Peltier technology
Temperature range: 0 °C to 80 °C, resolution: 0.1 °C
Receiving chamber:
Liquid-free cooling with Peltier technology
Temperature range: 0 °C to 80 °C, resolution: 0.1 °C
Corrosion-proof:
Automated reduced VOC emission
Vapor temperature: Pt100, class A ( glass)
Temperature range: 0 °C to 450 °C, resolution: 0.1 °C
Automatic correction by barometric pressure
Sample volume: Optical static detection system with contact image sensor (CIS) technology
Volume range: 0 mL to 100 mL, resolution: 0.01 mL
Accuracy: ±0.1 mL
Ambient pressure: Built-in pressure sensor, range: 30 kPa to 110 kPa, resolution: 0.1 kPa
Ambient humidity: Built-in humidity sensor, range: 0 % to 95 % (rel. humidity)
Ambient temperature: Built-in temperature sensor, temperature range: -20 °C to +80 °C, resolution: 0.1 °C
Status light: No
Test results: 200
User defined test methods: 15
Safety
Fire extinguisher:
Built-in fire extinguisher with IR sensor for fire detection
Connection of 4 bar to 6 bar CO2 or N2
Condition monitoring system: Detection of vapor temperature sensor, receiving chamber door, receiving cylinder, drip plate
Operating Requirements
Temperature: 10 °C to 35 °C
Relative humidity: 10 % to 80 % relative humidity at 35 °C
Voltage: 100 V to 240 V, 50/60 Hz
Total power: 900 W
Altitude: 0 m to 5000 m
Dimensions and Weight
Dimensions: approx. 406 mm × 525 mm × 645 mm (W × D × H)
Weight: approx. 40 kg
Further Features
Connectivity: 2 × USB
Accessories: bar code reader, printer, receipt printer, keyboard, various certified reference materials (CRM)
