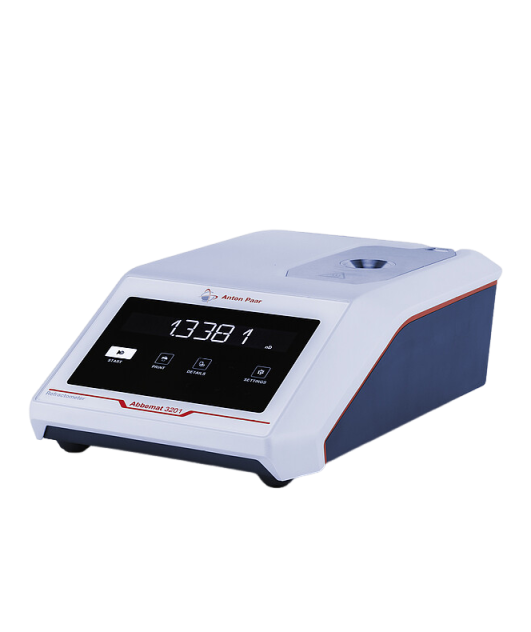

Anton Paar Abbemat Essential 3201 ເຄື່ອງວັດຄ່າການປະສົມແສງໃນຕູ້ວຽກ (1.26 nD - 1.72 nD / 0 °Brix - 100 °Brix / 4 °C - 105 °C)

Automatic benchtop refractometers are suitable for liquids, viscous or solid substances, and turbid solutions

Measuring specifications

Refractive index

Range: 1.26 nD - 1.72 nD

Max. resolution: 0.000001 nD

Accuracy1): ±0.00002 nD

Repeatability : ±0.0000015 nD

Brix

Range: 0 °Brix to 100 °Brix

Display resolution: 0.001 °Brix

Accuracy : ±0.015 °Brix

Temperature

Temperature range 2): 4°C - 105°C

Temperature probe accuracy1): ±0.03 °C

Temperature probe stability : ±0.002 °C

Display: 7" Hybrid touch

Communication interfaces: USB (printer)

Data storage: Label printer

General

Min. sample volume: 70 uL

Max. allowed pressure in micro flow cell: 10 bar

Ambient temperature: 5 °C to 40 °C

Materials in contact with the sample

Prism: Synthetic sapphire

Sample well: Stainless steel, optionally Ni-alloy

Seal: FFKM (perfluoroelastomer)

Compounds

Light source: LED light source, average lifetime > 100,000 hours

Wavelength : 589.3 nm (by wavelength-adjusted interference filter)

Power requirements: 100 VAC to 240 VAC +10 %/-15 %, 50/60 Hz, min. 10 W, max. 100 W,

depending on sample temperature setting and ambient temperature

Dimensions

W x H x D: 225 mm x 115 mm x 330 mm

Weight: 3.5 kg

Note:

1) Valid at standard conditions (T=20 °C, ambient temperature 20 °C to 25 °C

2) At max. ambient temperature of 35 °C
