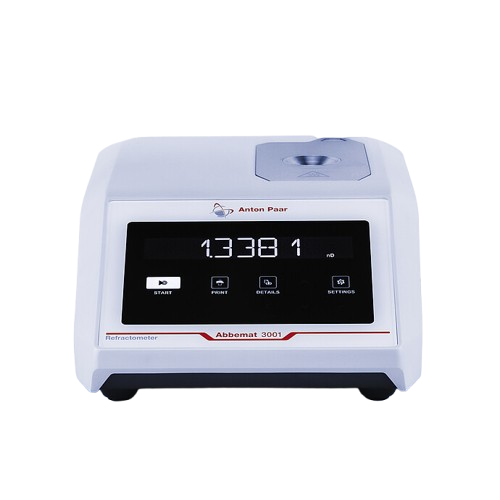

Anton Paar Abbemat Essential 3001 Benchtop Refractometer (1.33 nD ~ 1.55 nD; 0 °Brix ~ 100 °Brix; 20 °C ~ 40 °C)

Measuring specifications

Refractive index

Range: 1.33 nD to 1.55 nD

Max. resolution: 0.0001 nD

Accuracy1): ±0.0001 nD

Repeatability : ±0.0001 nD

Brix

Range: 0 °Brix to 100 °Brix

Display resolution: 0.01 °Brix

Accuracy : ±0.05 °Brix

Temperature

Temperature range: 20 °C to 40 °C

Temperature probe accuracy1): ±0.05 °C

Temperature probe stability: ±0.002 °C

Display: 7" Hybrid touch

Communication interfaces: USB (printer)

Data storage: Label printer

General

Min. sample volume: 70 uL

Max. allowed pressure in micro flow cell: 10 bar

Ambient temperature: 5 °C to 40 °C

Materials in contact with the sample

Prism: Synthetic sapphire

Sample well: Stainless steel, optionally Ni-alloy

Seal: FFKM (perfluoroelastomer)

Compounds

Light source: LED light source, average lifetime > 100,000 hours

Wavelength : 589.3 nm (by wavelength-adjusted interference filter)

Power requirements: 100 VAC to 240 VAC +10 %/-15 %, 50/60 Hz, min. 10 W, max. 100 W,

depending on sample temperature setting and ambient temperature

Dimensions

W x H x D: 225 mm x 115 mm x 330 mm

Weight: 3.5 kg

Note:

1) Valid at standard conditions (T=20 °C, ambient temperature 20 °C to 25 °C

2) At max. ambient temperature of 35 °C
