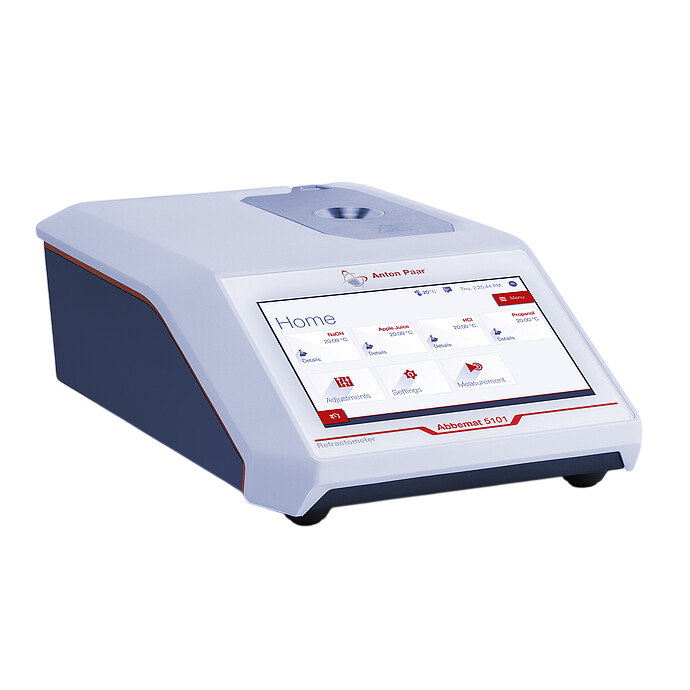

Anton Paar Abbemat Advanced 5101 ຫ້ອງທົດລອງ Refractometer (1.30 nD ~ 1.66 nD; 0 °Brix ~ 100 °Brix; 10 °C ~ 70 °C)

Refractive index [nD]

Range: 1.30 nD to 1.66 nD

Max. resolution: 0.00001 nD

Accuracy¹: ±0.00004 nD

Repeatability: ±0.0000015 nD

Brix

Range: 0 °Brix to 100 °Brix

Display resolution: 0.001 °Brix

Accuracy: ±0.03 °Brix

Temperature

Temperature range: 10 °C to 70 °C

Temperature probe accuracy¹: ±0.03 °C

Temperature  probe stability: ±0.002 °C

Display: 7" LCD touch screen

Communication interfaces:

1 x Ethernet

3 x USB B

CAN-Bus for connection with DMA density meter, MCP polarimeter, SVM viscometer, Xsample 520 sample changer

Features: User management, sample-specific configurations, pass/fail, preconfigured methods, AP Connect ready

Data storage: 10,000 measuring results, 400 products

General

Min. sample volume: 70 uL

Max. allowed pressure in micro flow cell: 10 bar

Ambient temperature: 5 °C to 40 °C

Materials in contact with the sample

Prism: Synthetic sapphire

Sample well: Stainless steel, optionally Ni-alloy

Seal: FFKM (perfluoroelastomer)

Compounds

Light source: LED light source, average lifetime > 100,000 hours

Wavelength: 589.3 nm (by wavelength-adjusted interference filter)

Power requirements: 100-240 VAC +10 %/-15 %, 50/60 Hz, min. 10 W, max. 100 W, depending on sample temperature setting and ambient temperature

Dimensions W x H x D: 225 mm x 115 mm x 330 mm

Weight: 3.5 kg

¹: Valid at standard conditions (T=20 °C, ambient temperature 20 °C to 25 °C
