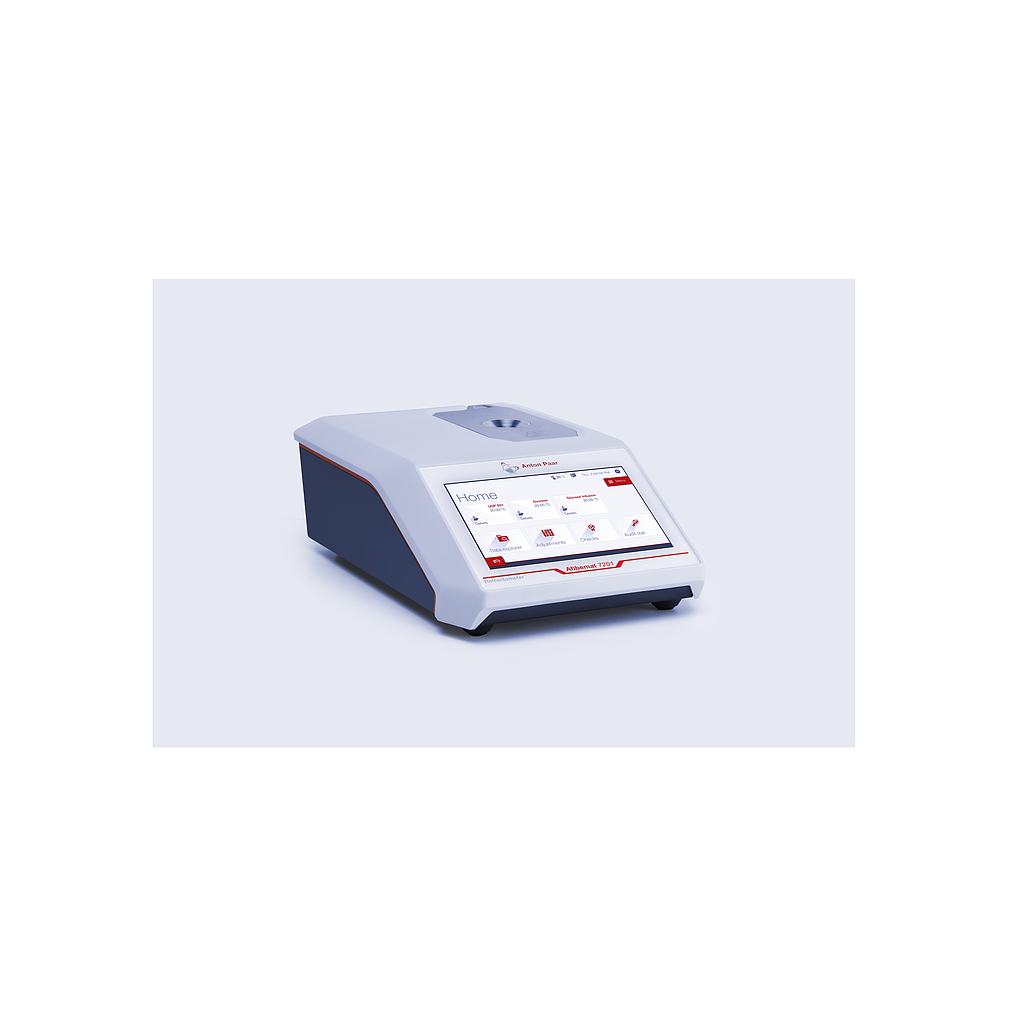

Anton Paar Abbemat 7201 ເຄື່ອງວັດຄ່າການດັດແກ້ຢາ (1.26 nD - 1.72 nD / 0 °Brix - 100 °Brix / 4 °C - 105 °C)

Refractive index [nD]

Range: 1.26 nD to 1.72 nD

Max. resolution: 0.000001 nD

Accuracy: ±0.00002 nD

Repeatability: ±0.0000015 nD

Brix

Range: 0 °Brix to 100 °Brix

Display resolution: 0.001 °Brix

Accuracy: ±0.015 °Brix

Temperature

Temperature range: 4°C to 105°C

Temperature  probe accuracy: ±0.03 °C

Temperature probe stability: ±0.002 °C

Display: 7" LCD touch screen

Communication interfaces

1 x Ethernet

3 x USB B

CAN-Bus for connection with DMA density meter, MCP polarimeter, SVM viscometer, Xsample 520 sample changer

Features: Audit trail, 21 CFR part 11, electronic signature, user management, sample specific configurations, pass/fail, preconfigured methods, AP Connect ready

Data storage: 10,000 measuring results 400 products

General

Min. sample volume: 70 uL

Max. allowed pressure in micro flow cell: 10 bar

Ambient temperature: 5 °C to 40 °C

Materials in contact with the sample

Prism:  Synthetic sapphire

Sample well: Stainless steel, optionally Ni-alloy

Seal: FFKM (perfluoroelastomer)

Compounds

Light source: LED light source, average lifetime > 100,000 hours

Wavelength: 589.3 nm (by wavelength-adjusted interference filter)

Power requirements: 100 VAC to 240 VAC +10 %/-15 %, 50/60 Hz, min. 10 W, max. 100 W,

depending on sample temperature setting and ambient temperature

Dimensions

W x H x D: 225 mm x 115 mm x 330 mm

Weight: 3.5 kg
