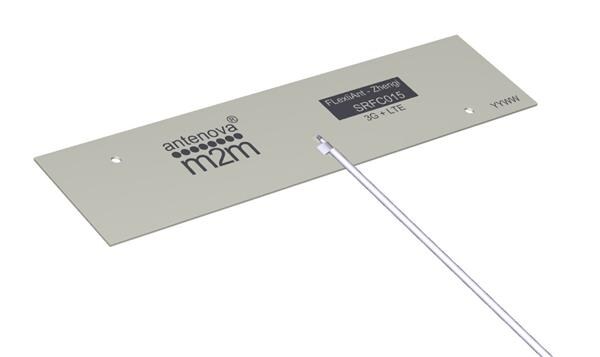

Antenova SRFC015-100 ເຄື່ອງຮັບສະຫນາມປະສົບຜົນ 100mm ສາຍ + Ipex MIMO 4G LTE

Gain: - 2.50 dBi, - 1.50 dBi, - 2.50 dBi, - 2.50 dBi, - 1.50 dBi

VSWR: 3.30 :1, 2.90 :1, 2.10 :1, 3.20 :1, 2.90 :1

Style: T-Bar Flex

Width: 20 mm

Height: 0.15 mm

Length: 80 mm

Impedance: 50 Ohms

Cable Type: 100 mm RF1.13

Technology: Cellular, LTE, MiMo

Application: Smart Meters, Femto / Pico base stations, Tracker Devices, Remote Monitoring, M2M, POS Terminals

Unit Weight: 500 mg

Cable Length: 113 mm

Polarization: Linear

Mounting Style: Adhesive Mount

Number of Bands: 6 Band

Center Frequency: 892 MHz, 1.85 GHz, 2.14 GHz, 2.35 GHz, 2.595 GHz

Mechanical Style: PCB Trace

Maximum Frequency: 2.69 GHz

Minimum Frequency: 824 MHz

Termination Style: Connector

Antenna Connector Type: IPEX MHF

Maximum Operating Temperature: + 85 C

Minimum Operating Temperature: - 40 C

Protocol - Cellular, NBIoT, LTE: 3G/4G, Cellular (NBIoT, LTE), GSM, DCS, PCS, WCDMA
