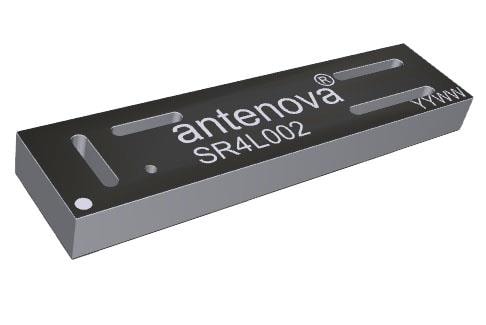

Antenova SR4L002 ແນວຮັບສະຫນັບສະຫນູນ LTE 700-LTE 2400MHz Max RL -6dB

Gain: - 1.5 dBi, - 1.5 dBi, - 1.5 dBi, - 2 dBi, - 2 dBi

VSWR: 3.2:1, 2.8:1, 3.1:1, 1.7:1, 3.4:1

Style: Ceramic

Width: 8.5 mm

Height: 3.3 mm

Length: 35 mm

Impedance: 50 Ohms

Technology: LTE

Application: 4G MiFi Routers, Femto, Pico Base Stations, Portable Devices, Remote Monitoring, Network Devices, Weareable Devices

Unit Weight: 2.100 g

Polarization: Linear

Mounting Style: PCB Mount

Number of Bands: 5 Band

Center Frequency: 2.595 GHz, 2.35 GHz, 1.94 GHz, 892 MHz, 748 MHz

Mechanical Style: Chip

Maximum Frequency: 2.69 GHz

Minimum Frequency: 698 MHz

Termination Style: SMD/SMT

Maximum Operating Temperature: + 140 C

Minimum Operating Temperature: - 40 C

Protocol - Cellular, NBIoT, LTE: 4G, Cellular (NBIoT, LTE), GSM, DCS, PCS, WCDMA
