Anritsu 56G/64G bit/s DEMUX MP1862A | EMIN.COM.LA

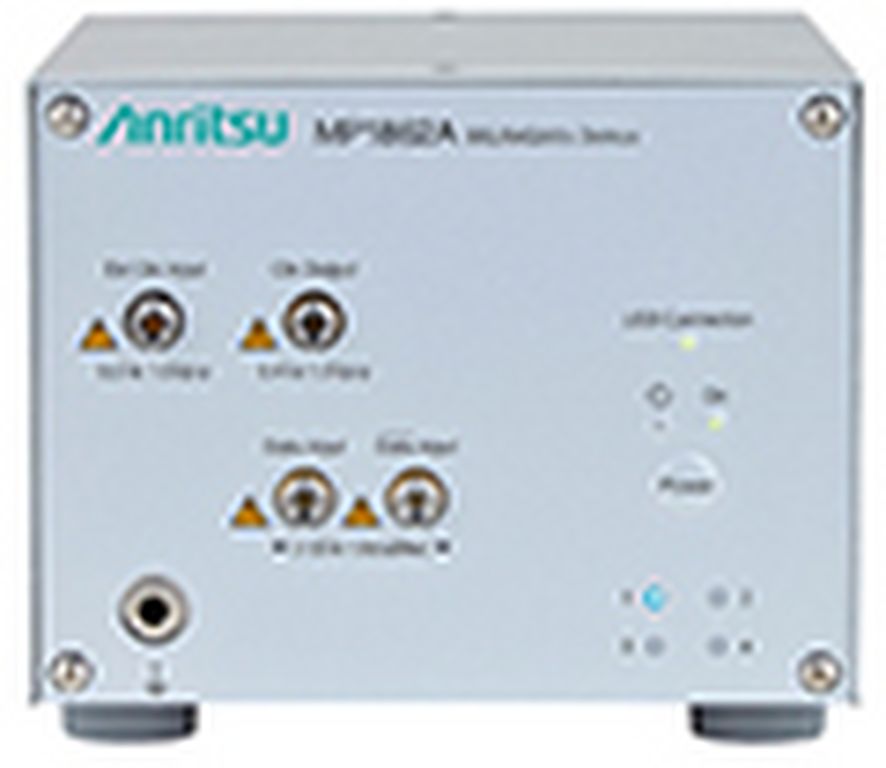

Anritsu 56G/64G bit/s DEMUX MP1862A

Name: Anritsu 56G/64G bit/s DEMUX MP1862A
Brand: ANRITSU

ຜູ້ຜະລິດANRITSU(ເບິ່ງສິນຄ້າອື່ນໆຂອງຍີ່ຫໍ້ນີ້)

ModelMP1862A

ຕິດຕໍ່

ຈຳນວນ

ການຊຳລະເງິນທີ່ປອດໄພ

ການຮັບປະກັນຄຸນນະພາບ

ປ່ຽນ ແລະ ສົ່ງຄືນງ່າຍ

ມີບໍລິການຈັດສົ່ງ

Brochure

56G/64G bit/s Test Solution (56G/64G MUX/DEMUX)

Features

56G/64G bit/s Wide Bandwidth: CEI-56G, 400 GbE, FEC bit rate
2:1 MUX, 1:2 DEMUX: Expand 28G/32G 2ch BERT to 56G/64G
Compact Remote Head: Reduces DUT connection cable losses
Excellent Signal Quality and Rx Sensitivity: High-accuracy measurements of
semiconductor chip
- Intrinsic Random Jitter 200 fs rms (typ.)
- Max. variable amplitude output: 3.5 Vp-p
- Input sensitivity: 25 mV (typ.), single-end, eye height
Versatile Signal Integrity Measurement Functions: Supports CEI-56G, 400 GbE tests
- TJ/DJ/RJ/Bathtub Jitter, Eye Diagram, Eye Margin Auto-measurements
- Jitter tolerance tests (using MU181500B)
- Crosstalk tests using variable data skew by using multi-channel
High Expandability
- Sync pattern generation and BER measurements for up to four channels simultaneously
- Emphasis signal generation (using MZ1854A, MP1861A 2ch sync, 57.8 Gbit/s)
- PAM4 signal generation (using MZ1854A, MP1861A 2ch sync, 56.2 Gbit/s)
- Supports burst signal test
- Max. 512 Mbit/ch programmable data pattern
- Auto PPG-to-MUX phase adjustment at bit rate change using auto-alignment function

Description

Traffic volumes at data centers are exploding with the spread of cloud computing services. To solve this problem, new high-speed interfaces, such as 400 GbE and CEI-56G, are being explored to speed up communications between servers and network equipment. The receiver characteristics and jitter tolerance are key performance indicators of PHY devices, such as SERDES, used by these high-speed interfaces. Combining the 56G/64G bit/s MUX MP1861A and 56G/64G bit/s DEMUX MP1862A with an MP1800A with installed PPG, ED and jitter modulation source supports generation of serial NRZ data up to 64 Gbit/s, as well as BER and jitter tolerance measurements. The tolerance to various jitter components, such as SJ, RJ, BUJ, SSC, Dual Tone SJ, Half Period Jitter (Even/Odd Jitter), can be measured along with Bathtub Jitter to support new standards, such as CEI-56G.

■ 56G/64G bit/s DEMUX MP1862A

Item		Specifications
Data Input	Bit Rate	8 Gbit/s to 56.2 Gbit/s 8 Gbit/s to 64.2 Gbit/s (MP1862A-001)
	No. of Channels	1ch and parallel sync up to 4ch by connecting MP1800A
	Amplitude	0.125 Vp-p to 1.0 Vp-p (MP1862A-011)
	Sensitivity	25 mV (typ.), ≤40 mV (Eye height, PRBS31, Single-ended)
Dimensions and Mass		120 (W) × 90.9 (H) × 140 (D) mm (excluding projections); ≤5 kg
28G/32G bit/s PPG MU183020A/21A + 28G/32G bit/s ED MU183040B/41B + 56G/64G bit/s MUX MP1861A + 56G/64G bit/s DEMUX MP1862A		System Jitter Tolerance Typical example at 56.2 Gbit/s
