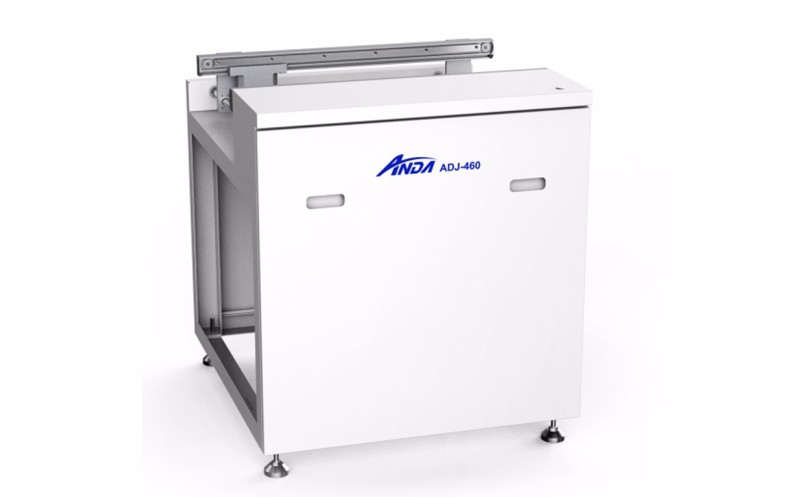

Anda ADJ 460 Load/Unload ເຄື່ອງອັດຕະໂນມັດ
Application range:
The fields of application involve SMT coating production line, dispensing production line and non-standard production line.
Product features:
Integrated frame soldered by sheet metal.
The board width of passing through the station is adjusted arbitrarily from 50 to 460mm.
Equipment length specification 0.5m,0.8m optional.
Technical Parameters ：
Size: L=800 W=840 H=1110mm
Control system: button
Working height: 900±20mm
Conveyor length: 800mm
Conveyor type: edge conveyor with extended pin chain
PCB size: 50～460mm
Conveyor speed: 0.35-6m/min
Conveyor direction: from left to right
Conveyor motor: JSCC governor motor +speed controller
Power supply: single phase 220V 50/60HZ
Total power: 100W
