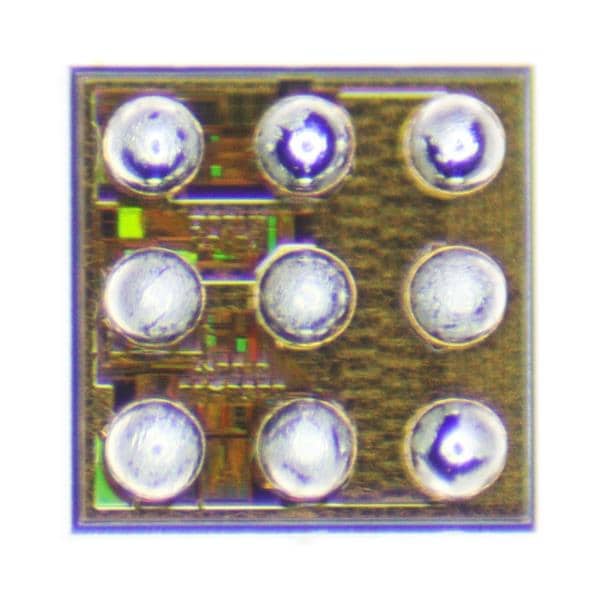

Analog Devices SSM2377ACBZ-R7 ແອັມພລິຟເອີໂອມໂນໂມ 1-Channel Mono 3W ບໍ່ມີຕົວກັນກັບຄລາດ D

Class: Class-D

Input Type: Differential

Output Type: 1-Channel Mono

Supply Type: Single

Unit Weight: 3.820 mg

Output Power: 3.17 W

Mounting Style: SMD/SMT

THD plus Noise: 0.007 %

Development Kit: EVAL-SSM2377Z

Output Signal Type: Differential

Description/Function: Speaker

Supply Voltage - Max: 5.5 V

Supply Voltage - Min: 2.5 V

Audio - Load Impedance: 8 Ohms

Operating Supply Current: 2.5 mA

Operating Supply Voltage: 3 V, 5 V

Maximum Operating Temperature: + 85 C

Minimum Operating Temperature: - 40 C

CMRR - Common Mode Rejection Ratio: 51 dB

PSRR - Power Supply Rejection Ratio: 80 dB
