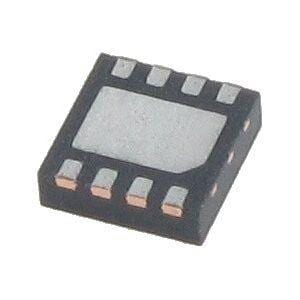

Analog Devices MAX40026ATA/VY+T ອະນາລອກ ຄອມເພຣດເຕີຣ໌ ຄອມເພຣດເຕີຣ໌ຄວາມໄວສູງ 1ns

Input Type: Rail-to-Rail

Output Type: LVDS

Qualification: AEC-Q100

Response Time: 280 ps

Mounting Style: SMD/SMT

Comparator Type: Differential

Number of Channels: 1 Channel

Supply Voltage - Max: 3.6 V

Supply Voltage - Min: 2.7 V

Pd - Power Dissipation: 784 mW

Propagation Delay Time: 280 ps

Ib - Input Bias Current: 10 uA

Operating Supply Current: 17 mA

Vcm - Common Mode Voltage: 1.23 V

Ios - Input Offset Current: 4 uA

Output Current per Channel: 24 mA

Vos - Input Offset Voltage: 500 uV

Maximum Operating Temperature: + 125 C

Minimum Operating Temperature: - 40 C

CMRR - Common Mode Rejection Ratio: 80 dB

PSRR - Power Supply Rejection Ratio: 80 dB
