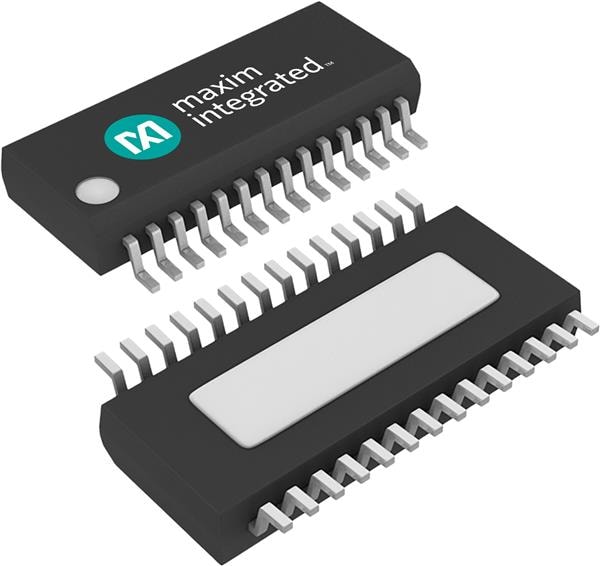

Analog Devices MAX3140EEI+T SPI/MICROWIRE-Compatible UART SPI/MICROWIRE-Compatible UART ມີການປະກອບລວມ

Width: 3.99 mm

Height: 1.73 mm

Length: 9.98 mm

Features: Integrated UART and RS-485/RS-422 transceiver in a single 28-pin QSOP

Data Rate: 115 kb/s, 500 kb/s, 10Mb/s

Memory Size: 8 B

Interface Type: RS-422, RS-485, SPI, UART

Mounting Style: SMD/SMT

Description/Function: SPI/MICROWIRE-Compatible UART with integrated RS-485/RS-422 transceivers

Supply Voltage - Max: 5.25 V

Supply Voltage - Min: 4.75 V

Operating Supply Current: 700 uA

Operating Supply Voltage: 5 V

Maximum Operating Temperature: + 85 C

Minimum Operating Temperature: - 40 C
