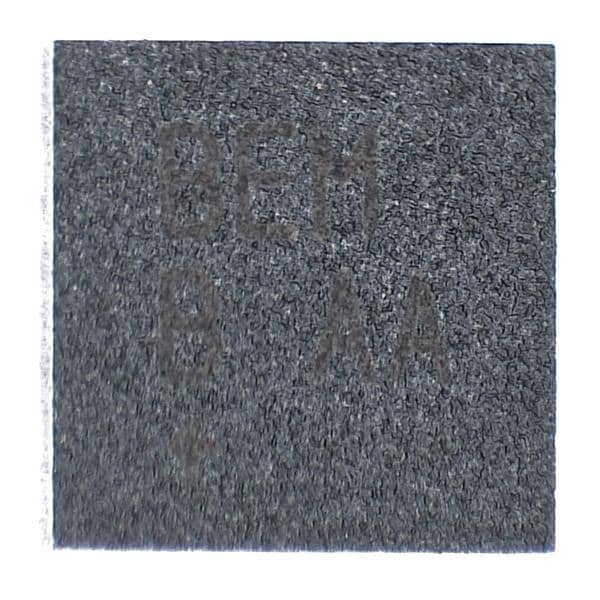

Analog Devices MAX22256AATB+ ຄວບຄຸມຕົວແປງ Half-Bridge 36V H-bridge ສໍາລັບ Isol

Shutdown: Shutdown

Fall Time: 3 ns

Rise Time: 3 ns

Logic Type: CMOS

Configuration: Non-Inverting

Mounting Style: SMD/SMT

Output Current: 1 A

Number of Drivers: 2 Driver

Number of Outputs: 2 Output

Supply Voltage - Max: 36 V

Supply Voltage - Min: 5 V

Pd - Power Dissipation: 1.9512 W

Operating Supply Current: 4.7 mA

Maximum Operating Temperature: + 125 C

Minimum Operating Temperature: - 40 C

Rds On - Drain-Source Resistance: 950 mOhms
