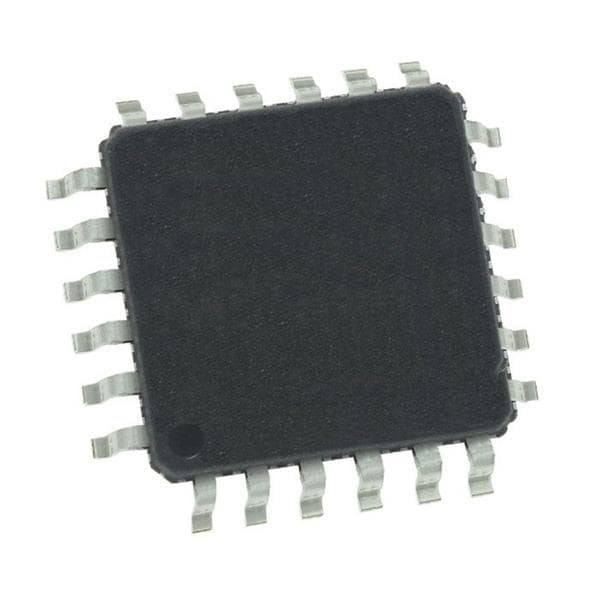

Analog Devices MAX1305ECM+ ADCs - ຕົວແປສັນຍາສະຕິງຈາກອນາລອກເປັນດິຈິຕອລ 8-/4-/2-ຊ່ອງ, 12-ບິດ, ພ້ອມກັນ-Sa

Width: 7.1 mm

Height: 1.45 mm

Length: 7.1 mm

Input Type: Single-Ended

Resolution: 12 bit

Unit Weight: 58.500 mg

Architecture: SAR

Sampling Rate: 1.075 MS/s

Interface Type: Parallel

Mounting Style: SMD/SMT

Reference Type: External, Internal

Reference Voltage: 2.5 V

Number of Channels: 4 Channel

Number of Converters: 1 Converter

Supply Voltage - Max: 5.25 V

Supply Voltage - Min: 2.7 V, 4.75 V

Pd - Power Dissipation: 1.8182 W

Operating Supply Voltage: 2.7 V to 5.25 V, 4.75 V to 5.25 V

INL - Integral Nonlinearity: +/- 1 LSB

SNR - Signal to Noise Ratio: 71 dB

Maximum Operating Temperature: + 85 C

Minimum Operating Temperature: - 40 C

DNL - Differential Nonlinearity: +/- 0.9 LSB
