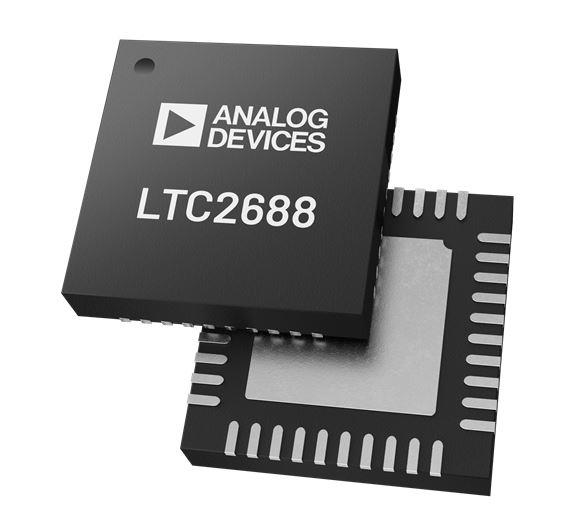

Analog Devices LTC2688HUJ-12#TRPBF ຕົວແປດິຈິຕອນເປັນອານາລອກ 16 ຊ່ອງ 12-ບິດ +/-15V SoftSpan DACs

Shutdown: No Shutdown

Gain Error: 0.08 %FSR

Resolution: 12 bit

Output Type: Voltage

Settling Time: 28 us

Interface Type: SPI

Mounting Style: SMD/SMT

Reference Type: Internal

Number of Channels: 16 Channel

Number of Converters: 16 Converter

Supply Voltage - Max: 5.25 V

Supply Voltage - Min: 4.75 V

Analog Supply Voltage: 4.75 V to 5.25 V

Operating Supply Current: 33.6 mA

INL - Integral Nonlinearity: 0.75 LSB

Maximum Operating Temperature: + 125 C

Minimum Operating Temperature: - 40 C

DNL - Differential Nonlinearity: 0.25 LSB
