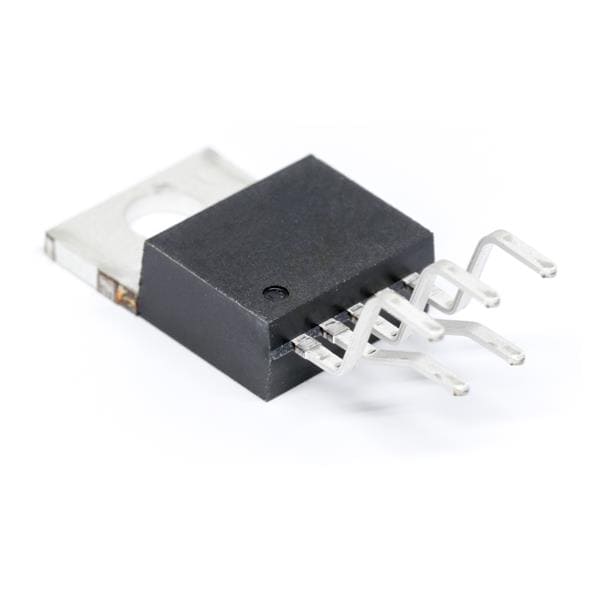

Analog Devices LT1764ET-3.3#PBF Positive Linear Regulators (LDO) 3A, Fast Tran Resp, L N, LDO Regs

Height: 4.57 mm

Polarity: Positive

Output Type: Fixed

REACH - SVHC: Details

Mounting Style: Through Hole

Output Current: 3 A

Output Voltage: 3.3 V

Dropout Voltage: 340 mV

Line Regulation: 4.5 mV

Load Regulation: 4 mV

Number of Outputs: 1 Output

Quiescent Current: 1 mA

Input Voltage - Max: 20 V

Input Voltage - Min: 2.7 V

Dropout Voltage - Max: 660 mV

Ib - Input Bias Current: 3 uA

Operating Supply Current: 1 mA

Maximum Operating Temperature: + 125 C

Minimum Operating Temperature: - 40 C

PSRR / Ripple Rejection - Typ: 63 dB
