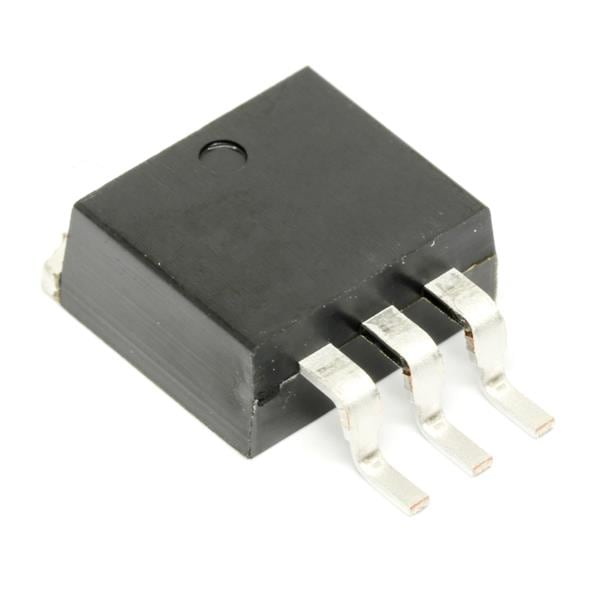

Analog Devices LT1587CM-3.6#TRPBF ຕົວຄວບຄຸມເຊື່ອມຕໍ່ເຊື່ອມບວກແບບເຊັນຕົວ 7A, 4.6A, 3A L Drop Fast Resp Pos Regs A

Height: 4.57 mm

Polarity: Positive

Output Type: Fixed

REACH - SVHC: Details

Mounting Style: SMD/SMT

Output Current: 3 A

Output Voltage: 3.6 V

Dropout Voltage: 1.25 V

Line Regulation: 0.005 %

Load Regulation: 0.05 %

Number of Outputs: 1 Output

Quiescent Current: 8 mA

Input Voltage - Max: 7 V

Input Voltage - Min: 2.7 V

Dropout Voltage - Max: 1.5 V

Operating Supply Current: 8 mA

Maximum Operating Temperature: + 150 C

Minimum Operating Temperature: 0 C

PSRR / Ripple Rejection - Typ: 72 dB
