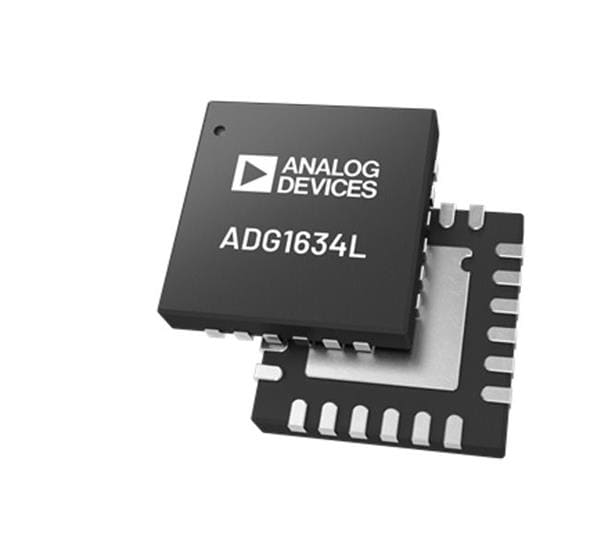

Analog Devices ADG1634LYCPZ-REEL7 ອິນເທກເຊັນອານາໂລກສະວິດຊ໌ Stacked Die, SPDT X 4

Supply Type: Single Supply, Dual Supply

Configuration: 4 x SPDT

On Time - Max: 154 ns, 201 ns

Mounting Style: SMD/SMT

Off Time - Max: 195 ns, 241 ns

Development Kit: EVAL-ADG1634LEBZ

Moisture Sensitive: Yes

Number of Channels: 4 Channel

Number of Switches: 4 Switch

Dual Supply Voltage: +/- 3.3 V to +/- 8 V

On Resistance - Max: 4.6 Ohms, 5.2 Ohms

Supply Current - Max: 90 uA, 95 uA

Supply Voltage - Max: 16 V

Supply Voltage - Min: 3.3 V

Operating Supply Voltage: 3.3 V, 5 V, 12 V

Maximum Dual Supply Voltage: 8 V

Minimum Dual Supply Voltage: 3.3 V

Maximum Operating Temperature: + 125 C

Minimum Operating Temperature: - 40 C
