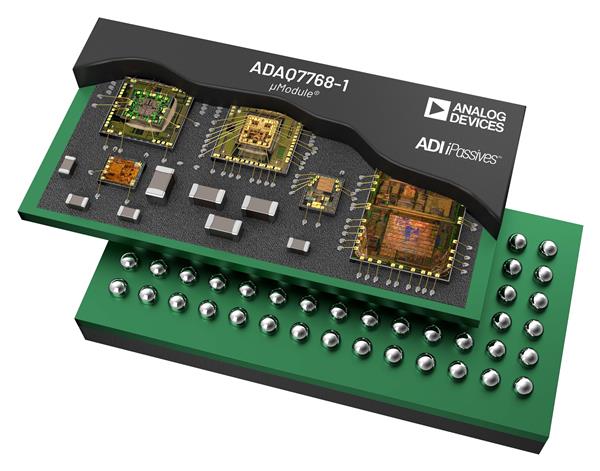

Analog Devices ADAQ7768-1BBCZ Precision ADC 24-Bit, 256kSPS, DAQ subsystem

Shutdown: No Shutdown

Gain Error: 0.005 %

Resolution: 24 bit

Sampling Rate: 256 ks/s

Settling Time: 60 ms

Interface Type: SPI

Mounting Style: SMD/SMT

Reference Voltage: 4.096 V

Moisture Sensitive: Yes

Number of Channels: 1 Channel

Supply Voltage - Max: - 4.5 V, 3.6 V, 5.5 V, 16 V

Supply Voltage - Min: - 16 V, 1.7 V, 2 V, 4.5 V, 4.75 V

Pd - Power Dissipation: 312 mW

Maximum Clock Frequency: 17 MHz

SNR - Signal to Noise Ratio: 105.9 dB

Maximum Operating Temperature: + 85 C

Minimum Operating Temperature: - 40 C
