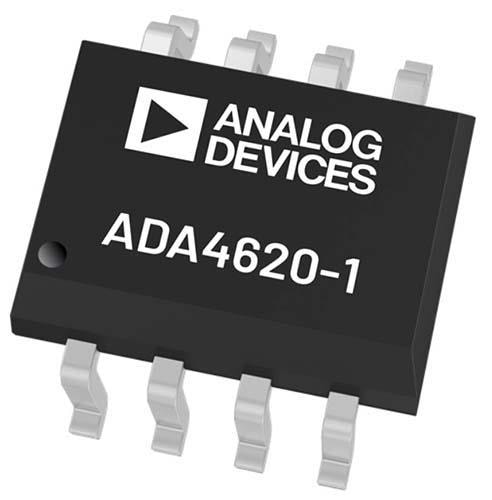

Analog Devices ADA4620-1ARZ ເພີ້ມສະຫຼຸບຄວາມແມ່ນຍະ 36V JFET Precision Amplifier

Shutdown: No Shutdown

Output Type: Rail-to-Rail

Settling Time: 500 ns

Amplifier Type: Precision Amplifier

Mounting Style: SMD/SMT

SR - Slew Rate: 34 V/us

Number of Channels: 1 Channel

Supply Voltage - Max: 36 V

Supply Voltage - Min: 4.5 V

Ib - Input Bias Current: 0.8 pA

Operating Supply Current: 1.3 mA

Ios - Input Offset Current: 100 fA

Vos - Input Offset Voltage: 30 uV

GBP - Gain Bandwidth Product: 16.5 MHz

Maximum Operating Temperature: + 125 C

Minimum Operating Temperature: - 40 C

In - Input Noise Current Density: 0.6 fA/sqrt Hz

en - Input Voltage Noise Density: 16.9 nV/sqrt Hz

CMRR - Common Mode Rejection Ratio: 117 dB

PSRR - Power Supply Rejection Ratio: 132 dB
