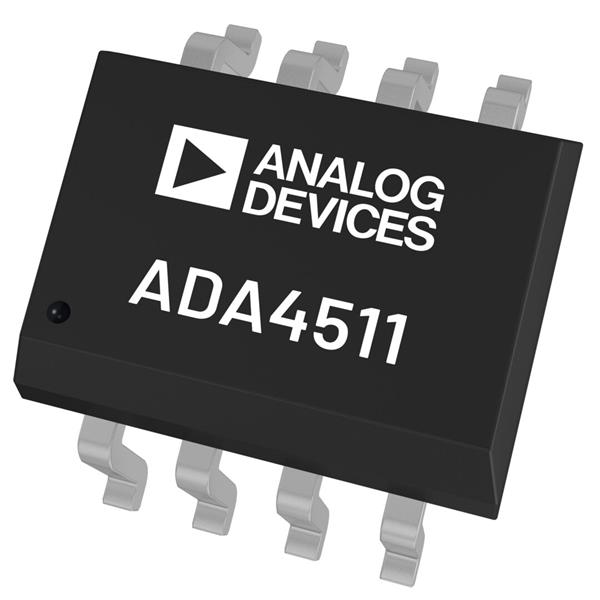

Analog Devices ADA4511-2ARZ-R7 Precision Op-Amps 40V Precision 2-Ch CMOS Amp

Shutdown: No Shutdown

Input Type: Rail-to-Rail

Output Type: Rail-to-Rail

Settling Time: 3.5 us

3 dB Bandwidth: 13.5 MHz

Mounting Style: SMD/SMT

SR - Slew Rate: 19 V/us

Development Kit: EVAL-ADA4511-2ARZ

Voltage Gain dB: 120 dB

Number of Channels: 2 Channel

Supply Voltage - Max: 40 V

Supply Voltage - Min: 6 V

Ib - Input Bias Current: 10 pA

Operating Supply Current: 2 mA

Ios - Input Offset Current: 5 pA

Output Current per Channel: 22 mA

Vos - Input Offset Voltage: 25 uV

GBP - Gain Bandwidth Product: 10.4 MHz

Maximum Operating Temperature: + 125 C

Minimum Operating Temperature: - 40 C

In - Input Noise Current Density: 4 fA/sqrt Hz

en - Input Voltage Noise Density: 5 nV/sqrt Hz, 10 nV/sqrt Hz

CMRR - Common Mode Rejection Ratio: 121 dB

PSRR - Power Supply Rejection Ratio: 140 dB
