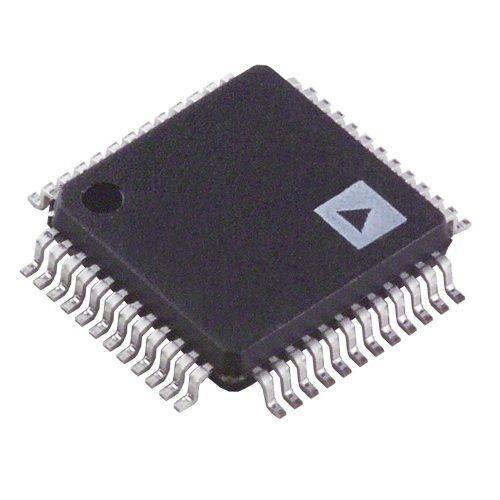

Analog Devices AD9433BSVZ-125 S/H ADC 12 bit 125 msps adc

Width: 10 mm

Height: 1 mm

Length: 10 mm

Gain Error: - 7 %FSR/3 %FSR

Input Type: Differential

Resolution: 12 bit

Unit Weight: 9.072 g

Architecture: Pipeline

Input Voltage: 2 Vp-p

Sampling Rate: 125 MS/s

Interface Type: Parallel

Mounting Style: SMD/SMT

Reference Type: External, Internal

Sample and Hold: Yes

Power Consumption: 1.35 W

Moisture Sensitive: Yes

Number of Channels: 1 Channel

Number of ADC Inputs: 1 Input

Number of Converters: 1 Converter

Supply Voltage - Max: 3 V, 5 V

Supply Voltage - Min: 3 V, 5 V

Pd - Power Dissipation: 1.5 W

Operating Supply Voltage: 3 V, 5 V

INL - Integral Nonlinearity: +/- 1.3 LSB

SNR - Signal to Noise Ratio: 68 dB

Maximum Operating Temperature: + 85 C

Minimum Operating Temperature: - 40 C

DNL - Differential Nonlinearity: +/- 1 LSB
