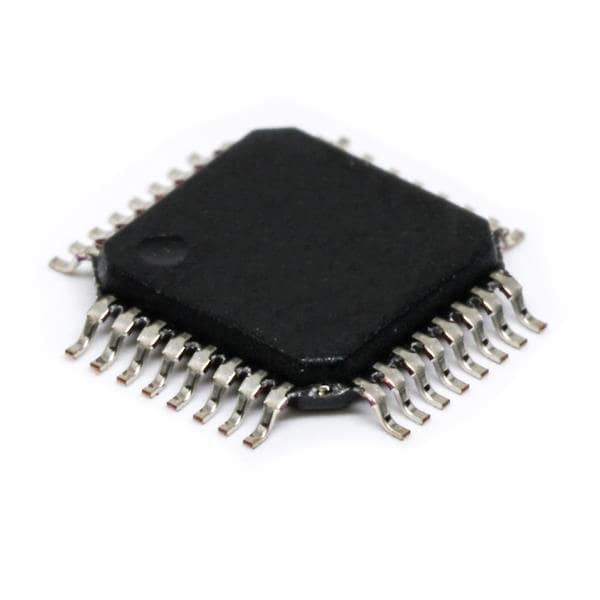

Analog Devices AD7266BSUZ-REEL7 S/H ADC ຄູ່ 2 MSPS, 12-Bit, 3Chan Sars ADC I.C.

Width: 7 mm

Height: 1 mm

Length: 7 mm

Gain Error: +/- 2.5 LSB

Input Type: Differential/Pseudo-Differential/Single-Ended

Resolution: 12 bit

Unit Weight: 72.800 mg

Architecture: SAR

Input Voltage: 2.5 V/5 V

Sampling Rate: 2 MS/s

Interface Type: Microwire, QSPI, SPI

Mounting Style: SMD/SMT

Reference Type: External, Internal

Development Kit: EVAL-AD7266EDZ

Sample and Hold: Yes

Moisture Sensitive: Yes

Number of Channels: 6 Channel

Number of ADC Inputs: 12 Input/6 Input

Number of Converters: 2 Converter

Supply Voltage - Max: 5.25 V

Supply Voltage - Min: 2.7 V

Pd - Power Dissipation: 33.6 mW

Operating Supply Voltage: 2.7 V to 5.25 V

INL - Integral Nonlinearity: +/- 1.5 LSB

SNR - Signal to Noise Ratio: 71 dB

Maximum Operating Temperature: + 125 C

Minimum Operating Temperature: - 40 C

DNL - Differential Nonlinearity: - 0.99 LSB/1.5 LSB
