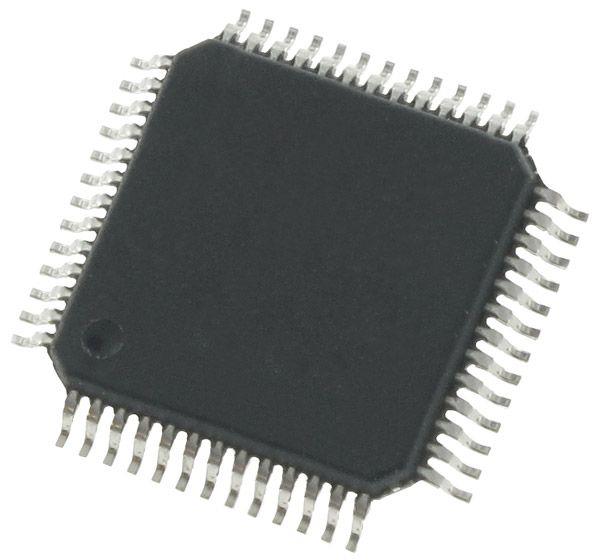

Analog Devices AD5361BSTZ-REEL DACs - ຕົວແປດຈິດຕະລາດເປັນອະນາໂລກ 16-CH 14-bit Serial bipolar DAC I.C.

Resolution: 14 bit

Output Type: Voltage Buffered

Unit Weight: 374.500 mg

Architecture: Resistor-String

Settling Time: 30 us

Interface Type: 4-Wire, Microwire, QSPI, SPI

Mounting Style: SMD/SMT

Reference Type: External

Moisture Sensitive: Yes

Number of Channels: 16 Channel

Number of Converters: 16 Converter

Supply Voltage - Max: 16.5 V

Supply Voltage - Min: - 4.5 V, 8 V

Pd - Power Dissipation: 245 mW

Operating Supply Current: 10 mA

INL - Integral Nonlinearity: +/- 1 LSB

Maximum Operating Temperature: + 85 C

Minimum Operating Temperature: - 40 C

DNL - Differential Nonlinearity: +/- 1 LSB
