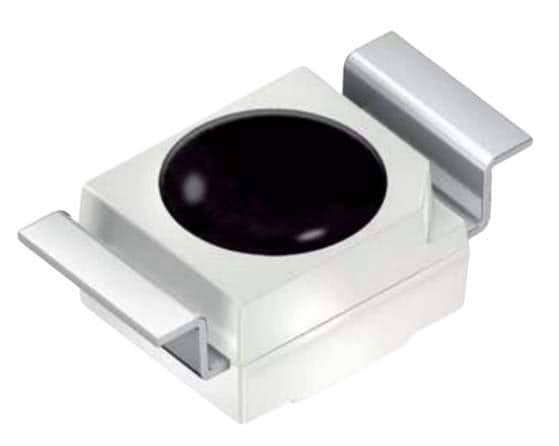

ams OSRAM SFH 3211 FA-3/4 ຊິລິຄອນ NPN ໂຟໂຕຣານຊິສຕໍ SFH 3211 FA-3/4-Z

Width: 2.8 mm

Height: 1.9 mm

Length: 3.2 mm

Fall Time: 8 us

Rise Time: 8 us

Wavelength: 950 nm

Unit Weight: 35 mg

Dark Current: 1 nA

Light Current: 80 uA

Qualification: AEC-Q100

Mounting Style: SMD/SMT

Peak Wavelength: 980 nm

Lens Color/Style: Black

Moisture Sensitive: Yes

Pd - Power Dissipation: 165 mW

Half Intensity Angle Degrees: 60 deg

Maximum Operating Temperature: + 100 C

Minimum Operating Temperature: - 40 C

Maximum On-State Collector Current: 15 mA

Collector- Emitter Voltage VCEO Max: 35 V

Collector-Emitter Breakdown Voltage: 35 V

Collector-Emitter Saturation Voltage: 150 mV
