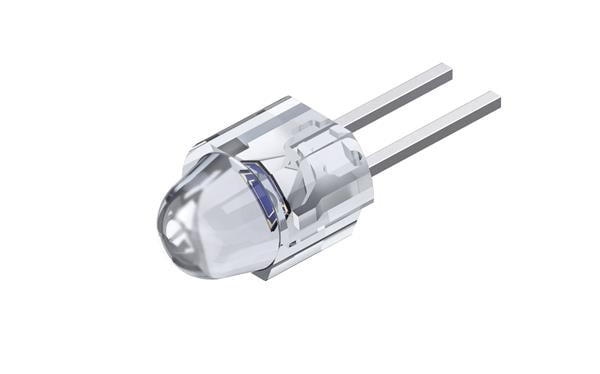

ams OSRAM SFH 2505-Z ພິນ ໂຟໂຕໂດໄອອດ PHOTODIODE, SMR

Width: 4.6 mm

Height: 7.4 mm

Length: 5.7 mm

Fall Time: 5 ns

Rise Time: 5 ns

Unit Weight: 0.115 mg

Dark Current: 100 pA

Photocurrent: 100 uA

Qualification: AEC-Q100

Mounting Style: Through Hole

Peak Wavelength: 850 nm

Moisture Sensitive: Yes

If - Forward Current: 100 mA

Vf - Forward Voltage: 1.3 V

Vr - Reverse Voltage: 50 V

Pd - Power Dissipation: 100 mW

Half Intensity Angle Degrees: 15 deg

Noise Equivalent Power - NEP: 2.9E-14 W/sqrt Hz

Maximum Operating Temperature: + 85 C

Minimum Operating Temperature: - 40 C
