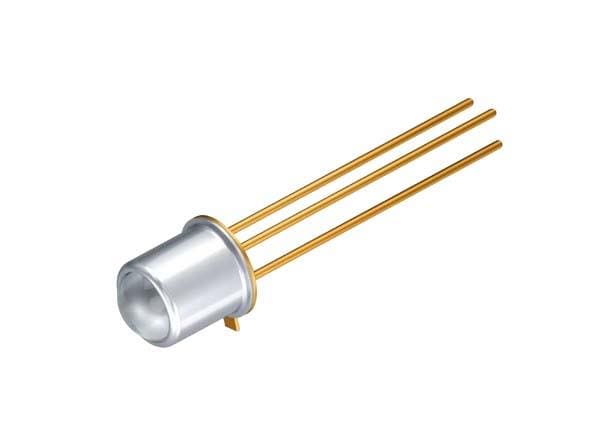

ams OSRAM BPY 62-3/4 ຊິບ PHOTODIODE

Width: 5.6 mm

Height: 6.2 mm

Length: 5.6 mm

Fall Time: 7 us, 9 us

Rise Time: 7 us, 9 us

Wavelength: 830 nm

Unit Weight: 332 mg

Dark Current: 50 nA

Light Current: 2.5 mA

Mounting Style: Through Hole

Peak Wavelength: 830 nm

Pd - Power Dissipation: 200 mW

Half Intensity Angle Degrees: 8 deg

Maximum Operating Temperature: + 125 C

Minimum Operating Temperature: - 40 C

Maximum On-State Collector Current: 100 mA

Collector- Emitter Voltage VCEO Max: 35 V

Collector-Emitter Breakdown Voltage: 35 V

Collector-Emitter Saturation Voltage: 160 mV
