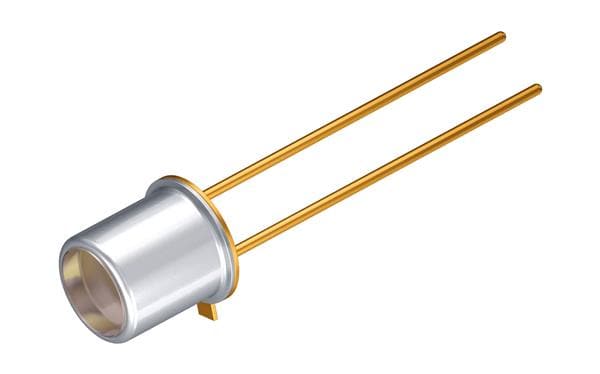

ams OSRAM BPX 65 ໂຟໂຕໄດໂອດ PIN ຊິລິຄອນ ໂຟໂຕໄດໂອດ PIN

Width: 5.6 mm

Height: 5.5 mm

Length: 5.6 mm

Fall Time: 12 ns

Rise Time: 12 ns

Unit Weight: 300 mg

Dark Current: 1 nA

Photocurrent: 10 uA

Responsivity: 0.55 A/W

Mounting Style: Through Hole

Peak Wavelength: 850 nm

If - Forward Current: 100 mA

Vf - Forward Voltage: 1.3 V

Vr - Reverse Voltage: 20 V

Pd - Power Dissipation: 250 mW

Half Intensity Angle Degrees: 40 deg

Noise Equivalent Power - NEP: 3.3E-14 W/sqrt Hz

Maximum Operating Temperature: + 125 C

Minimum Operating Temperature: - 40 C
