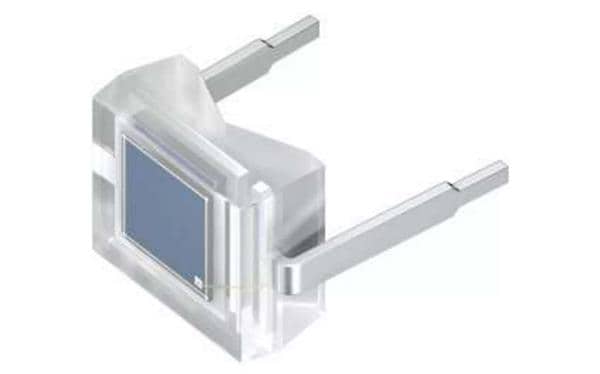

ams OSRAM BPW 34 ຊິລິຄອນ PIN ໂຟຕໂດໄອອດ PHOTODIODE T/H

Width: 4 mm

Height: 2.2 mm

Length: 4.5 mm

Fall Time: 20 ns

Rise Time: 20 ns

Unit Weight: 78 mg

Dark Current: 2 nA

Photocurrent: 80 uA

Responsivity: 0.62 A/W

Qualification: AEC-Q100

Mounting Style: Through Hole

Peak Wavelength: 850 nm

If - Forward Current: 100 mA

Vf - Forward Voltage: 1.3 V

Vr - Reverse Voltage: 32 V

Pd - Power Dissipation: 150 mW

Half Intensity Angle Degrees: 60 deg

Noise Equivalent Power - NEP: 4.1E-14 W/sqrt Hz

Maximum Operating Temperature: + 100 C

Minimum Operating Temperature: - 40 C
