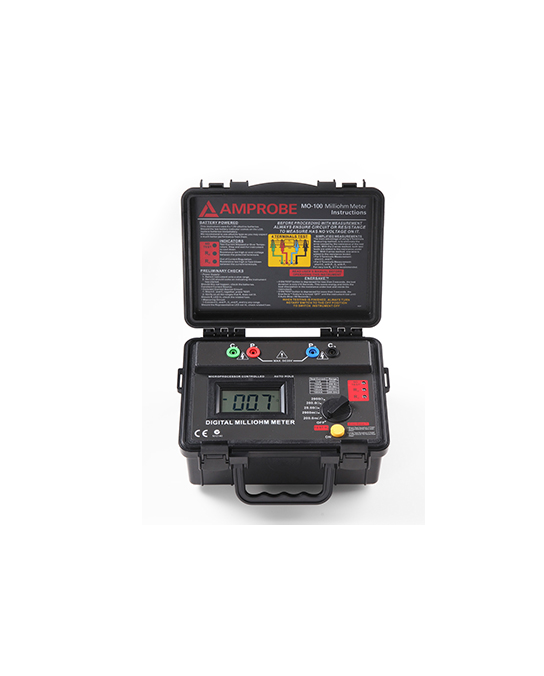

Amprobe MO-100 ມິນລິໂອແມັດ (0 ~ 2000 Ω)

Measuring ranges:

0-200.0m ohms in steps of 100µohm

0-2000m ohms in steps of 1m ohm

0-20.00 ohms in steps of 10m ohm

0-200.0 ohms in steps of 100m ohm

0-2000 ohms in steps of 1 ohm

Accuracy: ±0.5% of reading ±2 digits over the operating temperature range, -15 °C to 55 °C (5 °F to 131 °F), with the supplied test leads

Test current:

1mA =>2000 ohms range

10mA =>200/ 20 ohms range

100mA =>2000m / 200m ohm range

Test current accuracy: ±0.1%

Protection fuses:

Mains = 0.5A, HBC, 5 x 20mm, DIN

Current = 0.5A, HBC, 5 x 20mm, DIN

Voltage = 0.5A, HBC, 5 x 20mm, DIN

Maximum output

Voltage (C1-C2) 20V
