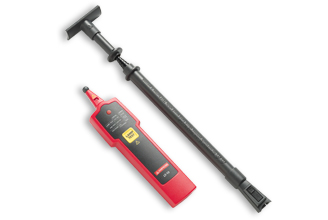

LT-10 Lamp Tester

Compatible lamps:T2, T4, T5, T8, T9, T10, T12 and fluorescent energy saving light bulbs

Test voltage:Approximately 3 kV / 280 kHz

Field strength:Approximately 100 μV/m at 260 - 300 kHz

Maximum antenna length:48"

Filament test:T2, T4, T5, T8, T9, T10, T12

VolTect™ non-contact voltage detection:AC 90 V to AC 600 V, 50/60 Hz

CAT II 300 V, CAT I 600 V

Non-contact voltage sensitivity with probe tip (typical):

LED illuminates and beeps at approx. 3 mm (0.12 in) distance from a wire carrying 120 Vac

LED illuminates and beeps at approx. 5 mm (0.2 in) distance from a wire carrying 230 Vac

Drop proof36"

Operating time:One second ON, one second OFF for maximum five cycles and wait for 1 minute before taking another measurement

Operating temperature:-10°C to +50°C (14°F to 122°F) ≤ 85% RH

Storage temperature:-10°C to +50°C (14°F to 122°F) ≤ 85% RH

Operating altitude:Up to 2000 meters

Battery:One 9V lithium or alkaline battery only, 6LR61/6LF22/MN1604 or equivalent.

Battery life:Up to 500 tests (Alkaline typically)

Dimensions (L x W x H):Approximately 170 x 40 x 24 mm (6.69 x 1.57 x 0.94 in) without antenna

Weight:Approximately 80 g (0.18 lb) with battery installed, excluding 48" antenna

Safety compliance:IEC 61010-1, UL 61010-1, CAN/CSA-C22.2 No. 61010-1-04
