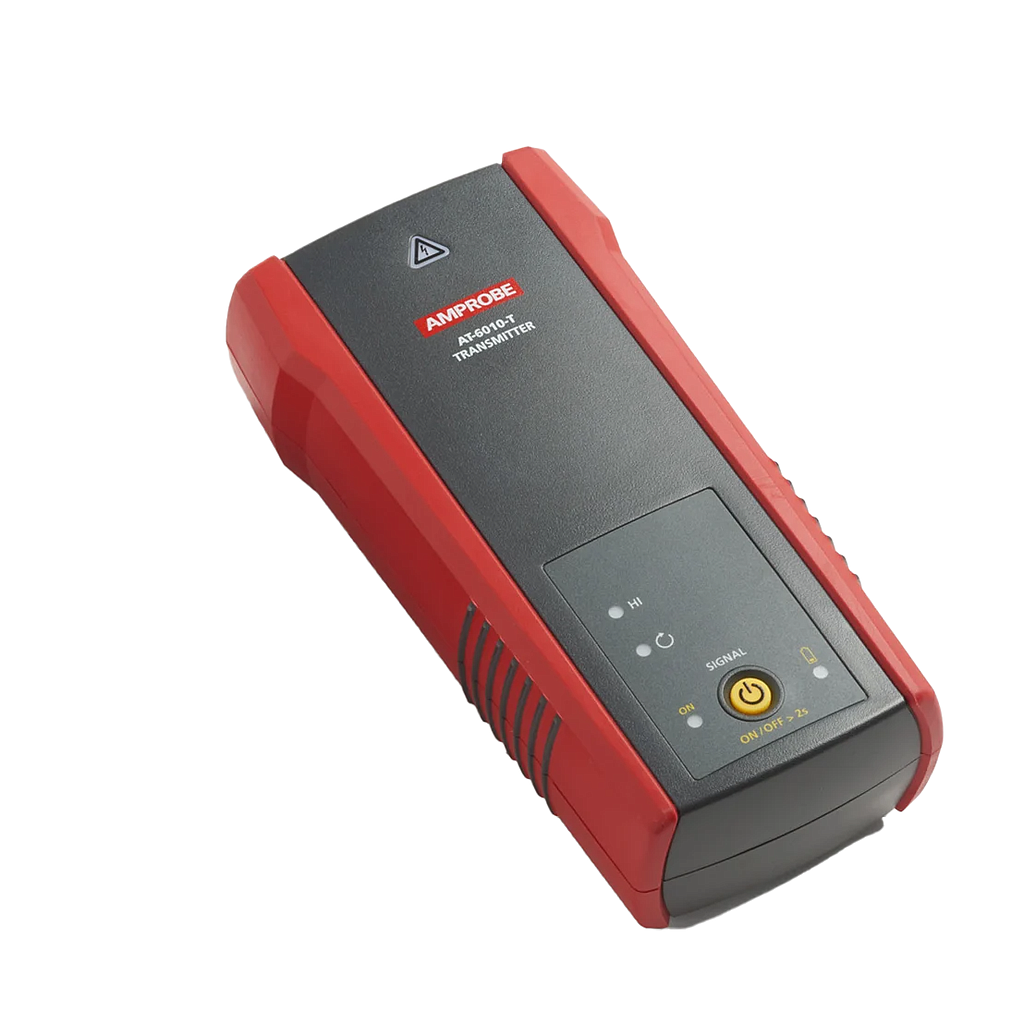

Amprobe AT-6010-T Advanced Wire Tracer Transmitter
Measurement category: CAT III 600 V
Operating voltage/current: 0 to 600 V
Operating frequency: Energized: 6.25 kHz
Hazardous voltage detection: > 30 V AC/DC
Signal indications: LED
Response time:
Line voltage monitoring: 1 sec
Battery voltage monitoring: 5 sec
Current output of signal (typical):
Energized circuit: HI mode: 60 mA RMS
De-energized circuit: HI mode: 130 mA RMS
Loop mode: 160 mA RMS
Signal voltage output (nominal):
De-energized circuit: HIGH: 33 V RMS, 140 Vp-p
With CT-400: Loop model: 31 V RMS, 120 Vp-p
IP rating: IP40
Battery life:
Hi mode: 25 h
Loop mode: 18 h
Dimensions (L x W x H): 7.2 x 3.66 x 1.97 in (183 x 93 x 50 mm)
Weight: 1.25 lb (0.57 kg)
