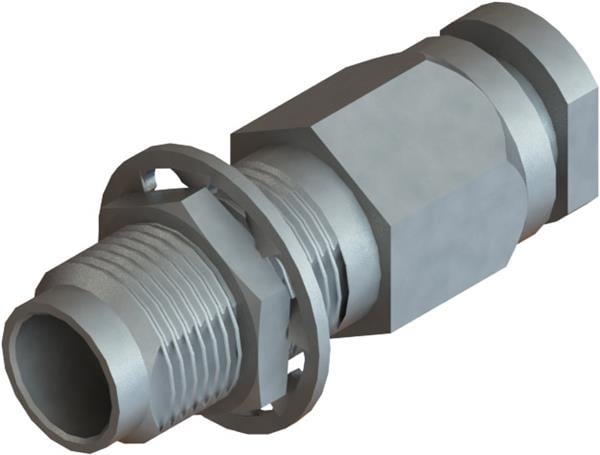

Amphenol SV Microwave SF3321-60004 ຕົວເຊື່ອມສາຍສະເພາະ 1.85mm F Bulkhead Conn ສຳລັບສາຍ .047

Gender: Jack (Socket)

Polarity: Standard

Frequency: DC to 65 GHz

Impedance: 50 Ohms

Isolation: Non-Isolated

RF Series: 1.85 mm

Body Style: Bulkhead

Cable Type: 0.047 in. Flexible Coax

Body Finish: Passivated

Orientation: Straight

Body Material: Stainless Steel

Mating Cycles: 500 Cycles

Mounting Type: Cable

Mounting Style: Panel Mount

Contact Plating: Gold

Contact Material: Beryllium Copper

Maximum Frequency: 65 GHz

Minimum Frequency: DC

Termination Style: Solder

Coupling Mechanism: Threaded

Contact Termination: Solder

Maximum Operating Temperature: + 165 C

Minimum Operating Temperature: - 65 C
