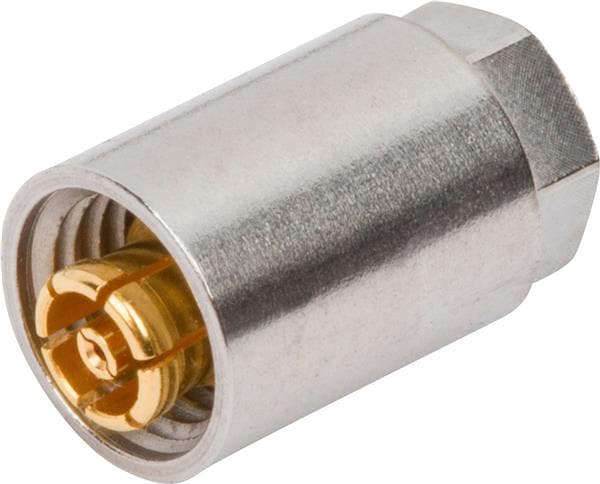

Amphenol SV Microwave 3221-60017 ຕົວເຊື່ອມສາຍສະແກນ SMPM ຍິງມີເກັບ .047

Gender: Jack (Socket)

Polarity: Standard

Frequency: DC to 40 GHz

Impedance: 50 Ohms

RF Series: SMPM

Body Style: Straight

Cable Type: 0.047 in. Flexible Coax

Orientation: Straight

REACH - SVHC: Details

Body Material: Beryllium Copper

Mating Cycles: 500 Cycles

Mounting Type: Cable

Mounting Style: Cable Mount / Free Hanging

Contact Plating: Gold

Contact Material: Beryllium Copper

Maximum Frequency: 65 GHz

Minimum Frequency: DC

Termination Style: Solder

Coupling Mechanism: Threaded

Contact Termination: Crimp

Maximum Operating Temperature: + 165 C

Minimum Operating Temperature: - 65 C
