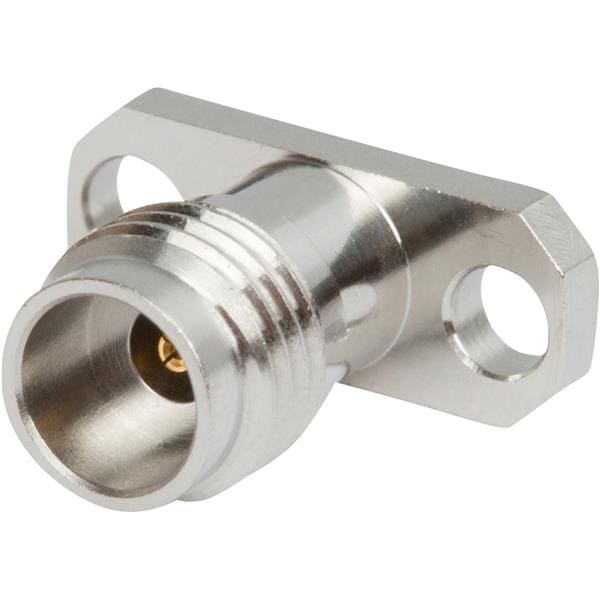

Amphenol SV Microwave 1621-60071 ຕູ້ຕໍ່ຕ່າງ Single Port Connectors 2.40 ST JCK-RCP 2HF

Gender: Jack (Socket)

Polarity: Standard

Frequency: 50 GHz

Impedance: 50 Ohms

RF Series: 2.4 mm

Body Style: Flange

Body Finish: Passivated

Orientation: Straight

REACH - SVHC: Details

Body Material: Stainless Steel

Mating Cycles: 500 Cycles

Mounting Type: Panel

Mounting Style: Flange Mount

Contact Plating: Gold

Contact Material: Beryllium Copper

Maximum Frequency: 50 GHz

Minimum Frequency: DC

Termination Style: Compression

Coupling Mechanism: Threaded

Contact Termination: Solder

Maximum Operating Temperature: + 165 C

Minimum Operating Temperature: - 65 C
