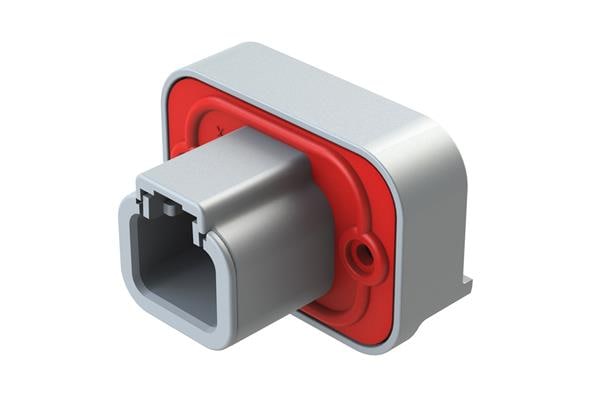

Amphenol SINE Systems ATP15-2P-BM01GRY 2-ທາງ 2Pos Strt PCB Flng Mnt Rcpt ເຫຼັກທອງ

Color: Gray

Pitch: 6.7 mm (0.264 in)

Gender: Receptacle (RP - Male)

Length: 44 mm

Insulation: Insulated

Contact Type: Pin

Current Rating: 25 A

Mounting Angle: Straight

Mounting Style: Mounting Flange

Number of Rows: 1 Row

Contact Plating: Gold

Contact Material: Copper Alloy

Housing Material: Thermoplastic (TP)

Termination Style: Solder Pin

Ingress Protection: IP67

Mating Part Number: ATP06-2S

Flammability Rating: UL 94 V-0

Number of Positions: 2 Position

Insulation Resistance: 1 GOhms

Maximum Operating Temperature: + 125 C

Minimum Operating Temperature: - 55 C
