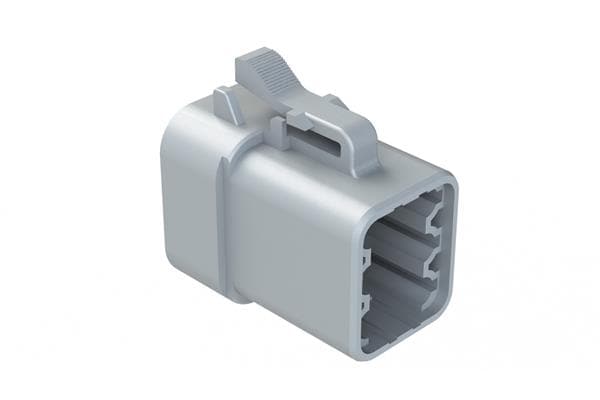

Amphenol SINE Systems ATP06-6S 6-Way A SERIES-ATP-CONNECTORS

Color: Gray

Gender: Plug (RP - Female)

Insulation: Insulated

Contact Type: Socket

Mating Gender: Receptacle

Contact Gender: Without Socket Contacts

Current Rating: 25 A

Mounting Angle: Straight

Mounting Style: Cable Mount / Free Hanging

Number of Rows: 2 Row

Wire Gauge Max: 10 AWG

Wire Gauge Min: 14 AWG

Housing Material: Thermoplastic (TP)

Wire Gauge Range: 10 AWG to 14 AWG

Ingress Protection: IP67

Mating Part Number: ATP04-6P

Flammability Rating: UL 94 V-0

Number of Positions: 6 Position

Insulation Resistance: 1 GOhms

Maximum Operating Temperature: + 125 C

Minimum Operating Temperature: - 55 C
