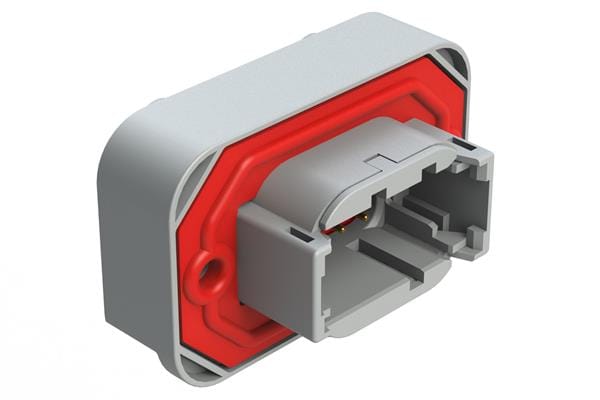

Amphenol SINE Systems ATM15-08PA-BM01 8-Way Str Flng Mnt PCB Rcp 8POS ສີເຫຼືອງທອງ Cont A

Color: Gray

Pitch: 4.2 mm (0.165 in)

Width: 33.1 mm

Gender: Receptacle (RP - Male)

Height: 30.2 mm

Length: 52.6 mm

Insulation: Insulated

Row Spacing: 7.1 mm

Contact Type: Pin

Current Rating: 7.5 A

Mounting Angle: Straight

Mounting Style: SMD/SMT

Number of Rows: 2 Row

Voltage Rating: 250 V

Wire Gauge Max: 16 AWG

Wire Gauge Min: 22 AWG

Contact Plating: Gold

Contact Material: Copper Alloy

Housing Material: Thermoplastic (TP)

Wire Gauge Range: 22 AWG to 16 AWG

Termination Style: Solder Pin

Ingress Protection: IP67

Mating Part Number: ATM06-08SX

Flammability Rating: UL 94 V-0

Number of Positions: 8 Position

Insulation Resistance: 1 GOhms

Maximum Operating Temperature: + 125 C

Minimum Operating Temperature: - 55 C
